<xs:complexType name="BallotStructure">
<xs:sequence>
<xs:element ref="ReportingUnitIdentifier" minOccurs="0" maxOccurs="unbounded" />
<xs:choice>
<xs:element ref="BallotIdentifier" />
<xs:sequence>
<xs:element name="Election" maxOccurs="unbounded">
<xs:complexType>
<xs:sequence>
<xs:element ref="ElectionIdentifier" />
<xs:element name="Description" type="MessagesStructure" minOccurs="0" />
<xs:element name="Contest" minOccurs="1" maxOccurs="unbounded">
<xs:complexType>
<xs:sequence>
<xs:element ref="ContestIdentifier" />
<xs:element name="ContestScope" type="xs:token" minOccurs="0" />
<xs:element name="ElectionType" type="xs:token" minOccurs="0" />
<xs:element ref="ReportingUnitIdentifier" minOccurs="0" maxOccurs="unbounded" />
<xs:element name="Qualified" minOccurs="0">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="YesNoType">
<xs:attribute name="Reason" type="xs:token" use="required" />
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element name="HowToVote" type="MessagesStructure" minOccurs="0" />
<xs:element name="Rotation" type="YesNoType" minOccurs="0" />
<xs:element name="RotationMethod" type="xs:token" minOccurs="0" />
<xs:element ref="VotingMethod" minOccurs="0" />
<xs:element name="ChoiceType" type="xs:token" minOccurs="0" />
<xs:element ref="MaxVotes" minOccurs="0" />
<xs:element ref="MinVotes" minOccurs="0" />
<xs:element name="MaxWriteIn" type="xs:nonNegativeInteger" minOccurs="0" />
<xs:element name="Blocked" minOccurs="0">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="YesNoType">
<xs:attribute name="Reason" type="xs:token" use="optional" />
<xs:attribute name="Channel" type="VotingChannelType" use="optional" />
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element ref="BallotChoices" />
<xs:element name="Messages" type="MessagesStructure" minOccurs="0" maxOccurs="unbounded" />
<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
</xs:sequence>
<xs:attribute name="DisplayOrder" type="xs:positiveInteger" use="optional" />
<xs:attribute name="Completed" type="YesNoType" use="optional" />
</xs:complexType>
</xs:element>
<xs:element name="Messages" type="MessagesStructure" minOccurs="0" maxOccurs="unbounded" />
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:choice minOccurs="0">
<xs:element ref="BallotIdentifier" />
<xs:element ref="BallotIdentifierRange" />
</xs:choice>
<xs:element name="Voter" minOccurs="0" maxOccurs="unbounded">
<xs:complexType>
<xs:choice>
<xs:sequence>
<xs:element name="VoterIdentification" type="VoterIdentificationStructure">
<xs:annotation>
<xs:documentation>Restriction is to prohibit electoral address information, VToken and VTokenQualified</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Contact" type="ContactDetailsStructure" minOccurs="0" />
</xs:sequence>
<xs:element name="Contact" type="ContactDetailsStructure" />
<xs:element name="Proxy" type="ProxyStructure" minOccurs="0" />
</xs:choice>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:choice>
<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
</xs:sequence>
</xs:complexType>
|

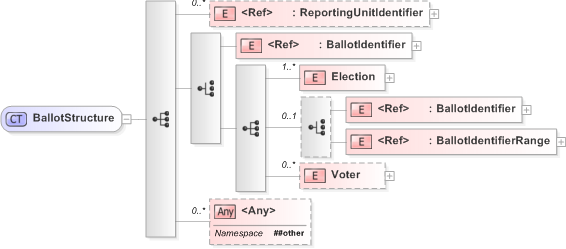

XSD Schema Diagram:
