Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: ComplexDateRangeStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: emlcore-v5-0.xsd
Abstract
Collapse XSD Schema Diagram:

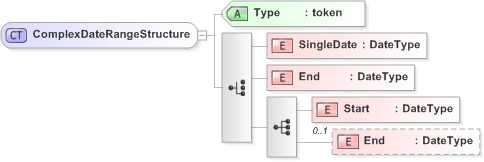

Drilldown into End in schema emlcore-v5-0_xsd Drilldown into Start in schema emlcore-v5-0_xsd Drilldown into End in schema emlcore-v5-0_xsd Drilldown into SingleDate in schema emlcore-v5-0_xsd Drilldown into Type in schema emlcore-v5-0_xsdXSD Diagram of ComplexDateRangeStructure in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="ComplexDateRangeStructure">
    <xs:choice>
        <xs:element name="SingleDate" type="DateType" />
        <xs:element name="End" type="DateType" />
        <xs:sequence>
            <xs:element name="Start" type="DateType" />
            <xs:element name="End" type="DateType" minOccurs="0" />
        </xs:sequence>
    </xs:choice>
    <xs:attribute name="Type" type="xs:token" use="required" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SingleDate nsA:SingleDate (1) (1)
End nsA:End (1) (1)
Start nsA:Start (1) (1)
End nsA:End 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Type nsA:Type Required
Collapse Derivation Tree:
  • ComplexDateRangeStructure
Collapse References:
nsA:Date
