Documentation for OASIS Election Markup Language (EML)
Definition Type: Element
Name: Contest
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: 340-410-430-include-v5-0.xsd
MinOccurs 1
MaxOccurs unbounded
Abstract

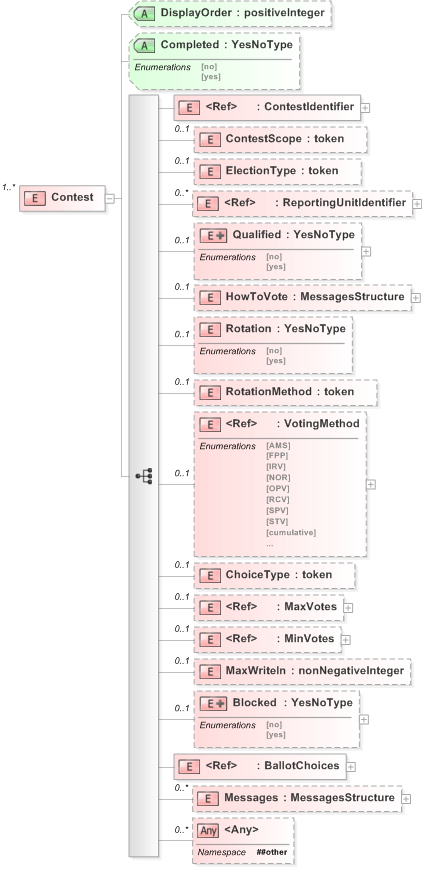

Collapse XSD Schema Diagram:
Drilldown into Messages in schema 340-410-430-include-v5-0_xsd Drilldown into BallotChoices in schema 340-410-430-include-v5-0_xsd Drilldown into Blocked in schema 340-410-430-include-v5-0_xsd Drilldown into MaxWriteIn in schema 340-410-430-include-v5-0_xsd Drilldown into MinVotes in schema emlcore-v5-0_xsd Drilldown into MaxVotes in schema emlcore-v5-0_xsd Drilldown into ChoiceType in schema 340-410-430-include-v5-0_xsd Drilldown into VotingMethod in schema emlcore-v5-0_xsd Drilldown into RotationMethod in schema 340-410-430-include-v5-0_xsd Drilldown into Rotation in schema 340-410-430-include-v5-0_xsd Drilldown into HowToVote in schema 340-410-430-include-v5-0_xsd Drilldown into Qualified in schema 340-410-430-include-v5-0_xsd Drilldown into ReportingUnitIdentifier in schema emlcore-v5-0_xsd Drilldown into ElectionType in schema 340-410-430-include-v5-0_xsd Drilldown into ContestScope in schema 340-410-430-include-v5-0_xsd Drilldown into ContestIdentifier in schema emlcore-v5-0_xsd Drilldown into Completed in schema 340-410-430-include-v5-0_xsd Drilldown into DisplayOrder in schema 340-410-430-include-v5-0_xsdXSD Diagram of Contest in schema 340-410-430-include-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="Contest" minOccurs="1" maxOccurs="unbounded">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ContestIdentifier" />
            <xs:element name="ContestScope" type="xs:token" minOccurs="0" />
            <xs:element name="ElectionType" type="xs:token" minOccurs="0" />
            <xs:element ref="ReportingUnitIdentifier" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="Qualified" minOccurs="0">
                <xs:complexType>
                    <xs:simpleContent>
                        <xs:extension base="YesNoType">
                            <xs:attribute name="Reason" type="xs:token" use="required" />
                        </xs:extension>
                    </xs:simpleContent>
                </xs:complexType>
            </xs:element>
            <xs:element name="HowToVote" type="MessagesStructure" minOccurs="0" />
            <xs:element name="Rotation" type="YesNoType" minOccurs="0" />
            <xs:element name="RotationMethod" type="xs:token" minOccurs="0" />
            <xs:element ref="VotingMethod" minOccurs="0" />
            <xs:element name="ChoiceType" type="xs:token" minOccurs="0" />
            <xs:element ref="MaxVotes" minOccurs="0" />
            <xs:element ref="MinVotes" minOccurs="0" />
            <xs:element name="MaxWriteIn" type="xs:nonNegativeInteger" minOccurs="0" />
            <xs:element name="Blocked" minOccurs="0">
                <xs:complexType>
                    <xs:simpleContent>
                        <xs:extension base="YesNoType">
                            <xs:attribute name="Reason" type="xs:token" use="optional" />
                            <xs:attribute name="Channel" type="VotingChannelType" use="optional" />
                        </xs:extension>
                    </xs:simpleContent>
                </xs:complexType>
            </xs:element>
            <xs:element ref="BallotChoices" />
            <xs:element name="Messages" type="MessagesStructure" minOccurs="0" maxOccurs="unbounded" />
            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="DisplayOrder" type="xs:positiveInteger" use="optional" />
        <xs:attribute name="Completed" type="YesNoType" use="optional" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContestIdentifier nsA:ContestIdentifier (1) (1)
ContestScope nsA:ContestScope 0 (1)
ElectionType nsA:ElectionType 0 (1)
ReportingUnitIdentifier nsA:ReportingUnitIdentifier 0 unbounded
Qualified nsA:Qualified 0 (1)
HowToVote nsA:HowToVote 0 (1)
Rotation nsA:Rotation 0 (1)
RotationMethod nsA:RotationMethod 0 (1)
VotingMethod nsA:VotingMethod 0 (1)
ChoiceType nsA:ChoiceType 0 (1)
MaxVotes nsA:MaxVotes 0 (1)
MinVotes nsA:MinVotes 0 (1)
MaxWriteIn nsA:MaxWriteIn 0 (1)
Blocked nsA:Blocked 0 (1)
BallotChoices nsA:BallotChoices (1) (1)
Messages nsA:Messages 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
DisplayOrder nsA:DisplayOrder Optional
Completed nsA:Completed Optional
