Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: CountMetricStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Type: decimal:http://www.w3.org/2001/XMLSchema
Containing Schema: emlcore-v5-0.xsd
Abstract

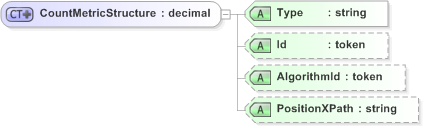

Collapse XSD Schema Diagram:
Drilldown into PositionXPath in schema emlcore-v5-0_xsd Drilldown into AlgorithmId in schema emlcore-v5-0_xsd Drilldown into Id in schema emlcore-v5-0_xsd Drilldown into Type in schema emlcore-v5-0_xsdXSD Diagram of CountMetricStructure in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="CountMetricStructure">
    <xs:simpleContent>
        <xs:extension base="xs:decimal">
            <xs:attribute name="Type" type="xs:string" use="required" />
            <xs:attribute name="Id" type="xs:token" use="optional" />
            <xs:attribute name="AlgorithmId" type="xs:token" use="optional" />
            <xs:attribute name="PositionXPath" type="xs:string" use="optional" />
        </xs:extension>
    </xs:simpleContent>
</xs:complexType>
Collapse Child Attributes:
Name Type Default Value Use
Type nsA:Type Required
Id nsA:Id Optional
AlgorithmId nsA:AlgorithmId Optional
PositionXPath nsA:PositionXPath Optional
Collapse Derivation Tree:
Collapse References:
nsA:CountMetric
Collapse Comments:
