Documentation for OASIS Election Markup Language (EML)
Definition Type: Element
Name: DependentLocality
Namespace: urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
Type: xal:DependentLocalityType
Containing Schema: xAL.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Dependent localities are Districts within cities/towns, locality divisions, postal divisions of cities, suburbs, etc. DependentLocality is a recursive element, but no nesting deeper than two exists (Locality-DependentLocality-DependentLocality).

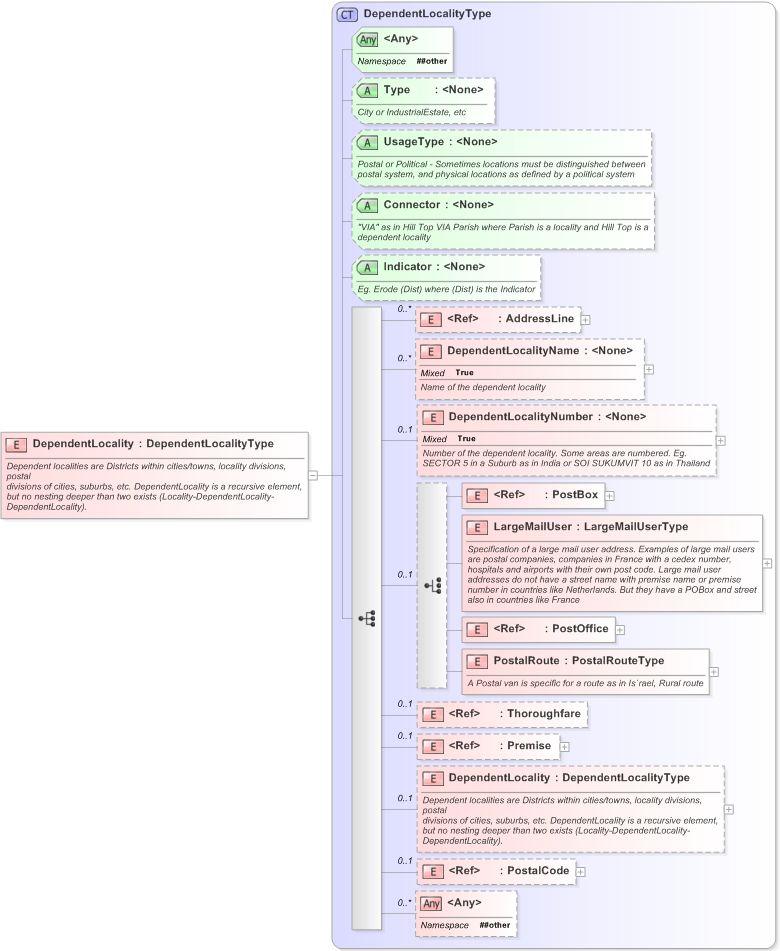

Collapse XSD Schema Diagram:
Drilldown into PostalCode in schema xal_xsd Drilldown into DependentLocality in schema xal_xsd Drilldown into Premise in schema xal_xsd Drilldown into Thoroughfare in schema xal_xsd Drilldown into PostalRoute in schema xal_xsd Drilldown into PostOffice in schema xal_xsd Drilldown into LargeMailUser in schema xal_xsd Drilldown into PostBox in schema xal_xsd Drilldown into DependentLocalityNumber in schema xal_xsd Drilldown into DependentLocalityName in schema xal_xsd Drilldown into AddressLine in schema xal_xsd Drilldown into Indicator in schema xal_xsd Drilldown into Connector in schema xal_xsd Drilldown into UsageType in schema xal_xsd Drilldown into Type in schema xal_xsd Drilldown into DependentLocalityType in schema xal_xsdXSD Diagram of DependentLocality in schema xal_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="DependentLocality" type="DependentLocalityType">
    <xs:annotation>
        <xs:documentation>Dependent localities are Districts within cities/towns, locality divisions, postal
divisions of cities, suburbs, etc. DependentLocality is a recursive element, but no nesting deeper than two exists (Locality-DependentLocality-DependentLocality).</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AddressLine xal:AddressLine 0 unbounded
DependentLocalityName xal:DependentLocalityName 0 unbounded
DependentLocalityNumber xal:DependentLocalityNumber 0 (1)
PostBox xal:PostBox (1) (1)
LargeMailUser xal:LargeMailUser (1) (1)
PostOffice xal:PostOffice (1) (1)
PostalRoute xal:PostalRoute (1) (1)
Thoroughfare xal:Thoroughfare 0 (1)
Premise xal:Premise 0 (1)
DependentLocality xal:DependentLocality 0 (1)
PostalCode xal:PostalCode 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Type xal:Type (Optional)
UsageType xal:UsageType (Optional)
Connector xal:Connector (Optional)
Indicator xal:Indicator (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse Comments:
