Documentation for OASIS Election Markup Language (EML)
Definition Type: Element
Name: ElectionEvent
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: 110-electionevent-v5-0.xsd
Abstract

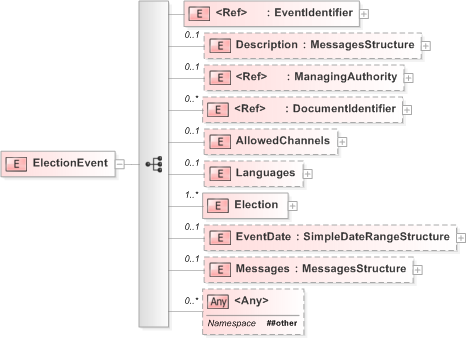

Collapse XSD Schema Diagram:
Drilldown into Messages in schema 110-electionevent-v5-0_xsd Drilldown into EventDate in schema 110-electionevent-v5-0_xsd Drilldown into Election in schema 110-electionevent-v5-0_xsd Drilldown into Languages in schema 110-electionevent-v5-0_xsd Drilldown into AllowedChannels in schema 110-electionevent-v5-0_xsd Drilldown into DocumentIdentifier in schema emlcore-v5-0_xsd Drilldown into ManagingAuthority in schema emlcore-v5-0_xsd Drilldown into Description in schema 110-electionevent-v5-0_xsd Drilldown into EventIdentifier in schema emlcore-v5-0_xsdXSD Diagram of ElectionEvent in schema 110-electionevent-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="ElectionEvent">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="EventIdentifier" />
            <xs:element name="Description" type="MessagesStructure" minOccurs="0" />
            <xs:element ref="ManagingAuthority" minOccurs="0" />
            <xs:element ref="DocumentIdentifier" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="AllowedChannels" minOccurs="0">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="Channel" maxOccurs="unbounded">
                            <xs:complexType>
                                <xs:sequence>
                                    <xs:element name="ChannelName" type="VotingChannelType" />
                                    <xs:element name="AuthenticationMethod" type="xs:token" minOccurs="0" maxOccurs="unbounded" />
                                    <xs:element name="ResponseMethod" type="xs:token" minOccurs="0" />
                                    <xs:element name="ChannelDate" type="SimpleDateRangeStructure" minOccurs="0" maxOccurs="unbounded" />
                                </xs:sequence>
                            </xs:complexType>
                        </xs:element>
                    </xs:sequence>
                    <xs:attribute name="DisplayOrder" type="xs:positiveInteger" use="optional" />
                </xs:complexType>
            </xs:element>
            <xs:element name="Languages" minOccurs="0">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="Language" type="LanguageType" maxOccurs="unbounded" />
                        <xs:element name="DefaultLanguage" type="LanguageType" minOccurs="0" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="Election" maxOccurs="unbounded">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element ref="ElectionIdentifier" />
                        <xs:element name="Description" type="MessagesStructure" minOccurs="0" />
                        <xs:element name="Date" type="ComplexDateRangeStructure" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element ref="ManagingAuthority" minOccurs="0" />
                        <xs:element ref="DocumentIdentifier" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="Contest" maxOccurs="unbounded">
                            <xs:complexType>
                                <xs:sequence>
                                    <xs:element ref="ContestIdentifier" />
                                    <xs:element name="ReportingUnit" minOccurs="0" maxOccurs="unbounded">
                                        <xs:complexType>
                                            <xs:sequence>
                                                <xs:element ref="ReportingUnitIdentifier" maxOccurs="unbounded" />
                                                <xs:element ref="ResponsibleOfficer" minOccurs="0" maxOccurs="unbounded" />
                                                <xs:element name="ResultsReported" type="ResultsReportedStructure" minOccurs="0" maxOccurs="unbounded" />
                                            </xs:sequence>
                                        </xs:complexType>
                                    </xs:element>
                                    <xs:element ref="Area" minOccurs="0" />
                                    <xs:element name="AllowedChannels" minOccurs="0">
                                        <xs:complexType>
                                            <xs:sequence>
                                                <xs:element name="Channel" maxOccurs="unbounded">
                                                    <xs:complexType>
                                                        <xs:sequence>
                                                            <xs:element name="ChannelName" type="VotingChannelType" />
                                                            <xs:element name="AuthenticationMethod" type="xs:token" minOccurs="0" maxOccurs="unbounded" />
                                                            <xs:element name="ResponseMethod" type="xs:token" minOccurs="0" />
                                                            <xs:element name="ChannelDate" type="SimpleDateRangeStructure" minOccurs="0" maxOccurs="unbounded" />
                                                        </xs:sequence>
                                                    </xs:complexType>
                                                </xs:element>
                                            </xs:sequence>
                                            <xs:attribute name="DisplayOrder" type="xs:positiveInteger" use="optional" />
                                        </xs:complexType>
                                    </xs:element>
                                    <xs:element ref="ManagingAuthority" minOccurs="0" />
                                    <xs:element ref="Position" minOccurs="0" />
                                    <xs:element name="Description" type="MessagesStructure" minOccurs="0" />
                                    <xs:element ref="VotingMethod" minOccurs="1" maxOccurs="unbounded" />
                                    <xs:element ref="CountingAlgorithm" minOccurs="0" />
                                    <xs:element ref="CountMetric" minOccurs="0" maxOccurs="unbounded" />
                                    <xs:element ref="BallotIdentifierRange" minOccurs="0" />
                                    <xs:element ref="MaxVotes" />
                                    <xs:element ref="MinVotes" minOccurs="0" />
                                    <xs:element name="MaxWriteIn" type="xs:positiveInteger" minOccurs="0" />
                                    <xs:element ref="NumberOfPositions" minOccurs="0" />
                                    <xs:element ref="PollingPlace" minOccurs="0" maxOccurs="unbounded" />
                                    <xs:element name="Messages" type="MessagesStructure" minOccurs="0" />
                                    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
                                </xs:sequence>
                                <xs:attribute name="DisplayOrder" type="xs:positiveInteger" use="optional" />
                            </xs:complexType>
                        </xs:element>
                        <xs:element name="Messages" type="MessagesStructure" minOccurs="0" />
                        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="EventDate" type="SimpleDateRangeStructure" minOccurs="0" />
            <xs:element name="Messages" type="MessagesStructure" minOccurs="0" />
            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EventIdentifier nsA:EventIdentifier (1) (1)
Description nsA:Description 0 (1)
ManagingAuthority nsA:ManagingAuthority 0 (1)
DocumentIdentifier nsA:DocumentIdentifier 0 unbounded
AllowedChannels nsA:AllowedChannels 0 (1)
Languages nsA:Languages 0 (1)
Election nsA:Election (1) unbounded
EventDate nsA:EventDate 0 (1)
Messages nsA:Messages 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
