Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: ElectionIdentifierStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: emlcore-v5-0.xsd
Abstract

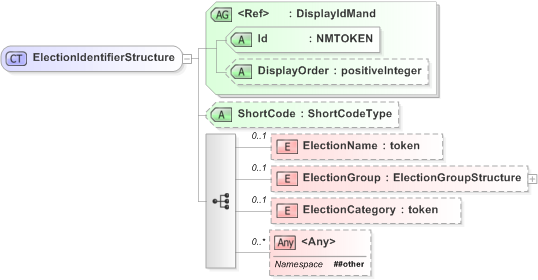

Collapse XSD Schema Diagram:
Drilldown into ElectionCategory in schema emlcore-v5-0_xsd Drilldown into ElectionGroup in schema emlcore-v5-0_xsd Drilldown into ElectionName in schema emlcore-v5-0_xsd Drilldown into ShortCode in schema emlcore-v5-0_xsd Drilldown into DisplayOrder in schema emlcore-v5-0_xsd Drilldown into Id in schema emlcore-v5-0_xsd Drilldown into DisplayIdMand in schema emlcore-v5-0_xsdXSD Diagram of ElectionIdentifierStructure in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="ElectionIdentifierStructure">
    <xs:sequence>
        <xs:element name="ElectionName" type="xs:token" minOccurs="0" />
        <xs:element name="ElectionGroup" type="ElectionGroupStructure" minOccurs="0" />
        <xs:element name="ElectionCategory" type="xs:token" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attributeGroup ref="DisplayIdMand" />
    <xs:attribute name="ShortCode" type="ShortCodeType" use="optional" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ElectionName nsA:ElectionName 0 (1)
ElectionGroup nsA:ElectionGroup 0 (1)
ElectionCategory nsA:ElectionCategory 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Id nsA:Id Required
DisplayOrder nsA:DisplayOrder Optional
ShortCode nsA:ShortCode Optional
Collapse Derivation Tree:
Collapse References:
nsA:ElectionIdentifier
