Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: ElectoralAddressStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Type: xal:AddressDetails
Containing Schema: emlexternals-v5-0.xsd
Abstract
Collapse XSD Schema Diagram:

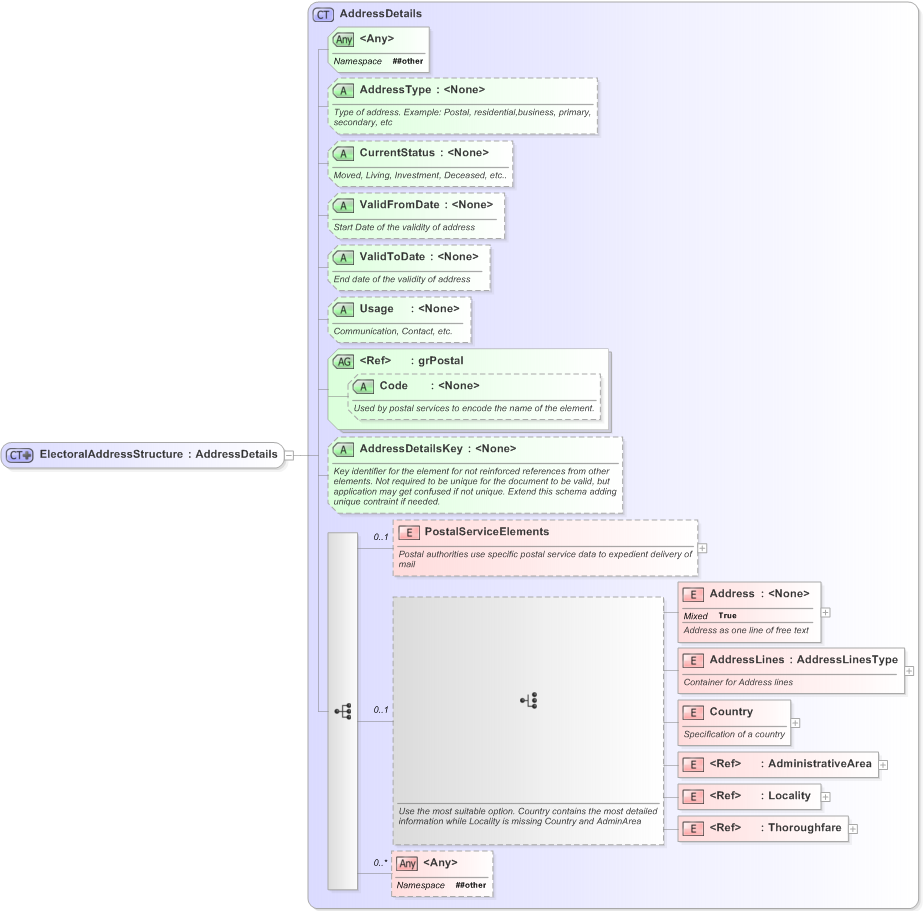

Drilldown into Thoroughfare in schema xal_xsd Drilldown into Locality in schema xal_xsd Drilldown into AdministrativeArea in schema xal_xsd Drilldown into Country in schema xal_xsd Drilldown into AddressLines in schema xal_xsd Drilldown into Address in schema xal_xsd Drilldown into PostalServiceElements in schema xal_xsd Drilldown into AddressDetailsKey in schema xal_xsd Drilldown into Code in schema xal_xsd Drilldown into grPostal in schema xal_xsd Drilldown into Usage in schema xal_xsd Drilldown into ValidToDate in schema xal_xsd Drilldown into ValidFromDate in schema xal_xsd Drilldown into CurrentStatus in schema xal_xsd Drilldown into AddressType in schema xal_xsd Drilldown into AddressDetails in schema xal_xsdXSD Diagram of ElectoralAddressStructure in schema emlexternals-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="ElectoralAddressStructure">
    <xs:complexContent>
        <xs:extension base="xal:AddressDetails" />
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PostalServiceElements xal:PostalServiceElements 0 (1)
Address xal:Address (1) (1)
AddressLines xal:AddressLines (1) (1)
Country xal:Country (1) (1)
AdministrativeArea xal:AdministrativeArea (1) (1)
Locality xal:Locality (1) (1)
Thoroughfare xal:Thoroughfare (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
AddressType xal:AddressType (Optional)
CurrentStatus xal:CurrentStatus (Optional)
ValidFromDate xal:ValidFromDate (Optional)
ValidToDate xal:ValidToDate (Optional)
Usage xal:Usage (Optional)
Code xal:Code (Optional)
AddressDetailsKey xal:AddressDetailsKey (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:ElectoralAddress, nsA:PreviousElectoralAddress, nsA:PreviousElectoralAddress
