Docs for schema item IncomingChannelOptions in OASIS Election Markup Language (EML)

Documentation for OASIS Election Markup Language (EML)

Definition Type:	Element
Name:	IncomingChannelOptions
Namespace:	urn:oasis:names:tc:evs:schema:eml
Type:	nsA:IncomingGenericCommunicationStructure
Containing Schema:	360b-incomingchanneloptions-v5-0.xsd
Abstract

XSD Schema Diagram:

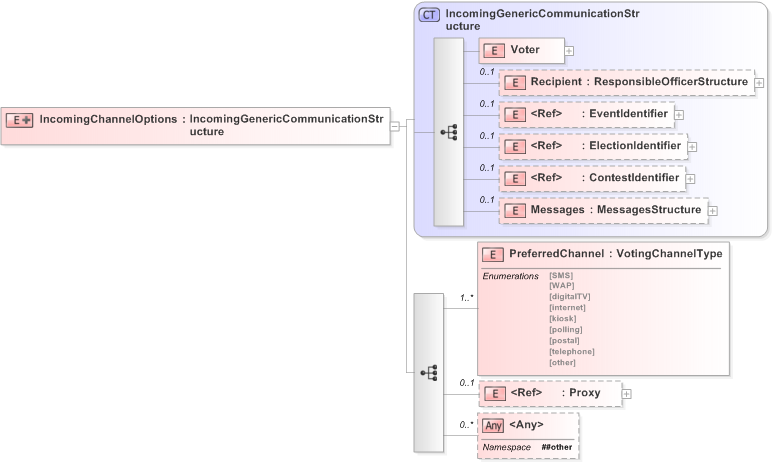

XSD Diagram of IncomingChannelOptions in schema 360b-incomingchanneloptions-v5-0_xsd (OASIS Election Markup Language (EML))

XSD Schema Code:

<xs:element name="IncomingChannelOptions">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="IncomingGenericCommunicationStructure">
                <xs:sequence>
                    <xs:element name="PreferredChannel" type="VotingChannelType" maxOccurs="unbounded" />
                    <xs:element ref="Proxy" minOccurs="0" />
                    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
Voter	nsA:Voter	(1)	(1)
Recipient	nsA:Recipient	0	(1)
EventIdentifier	nsA:EventIdentifier	0	(1)
ElectionIdentifier	nsA:ElectionIdentifier	0	(1)
ContestIdentifier	nsA:ContestIdentifier	0	(1)
Messages	nsA:Messages	0	(1)
PreferredChannel	nsA:PreferredChannel	(1)	unbounded
Proxy	nsA:Proxy	0	(1)
<xs:any>	Allowed namespace: '##other'	0	unbounded

Derivation Tree:
	nsA:IncomingGenericCommunicationStructure *IncomingChannelOptions*
