Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: InternalGenericCommunicationStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: emlcore-v5-0.xsd
Abstract

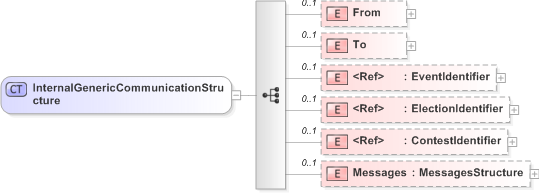

Collapse XSD Schema Diagram:
Drilldown into Messages in schema emlcore-v5-0_xsd Drilldown into ContestIdentifier in schema emlcore-v5-0_xsd Drilldown into ElectionIdentifier in schema emlcore-v5-0_xsd Drilldown into EventIdentifier in schema emlcore-v5-0_xsd Drilldown into To in schema emlcore-v5-0_xsd Drilldown into From in schema emlcore-v5-0_xsdXSD Diagram of InternalGenericCommunicationStructure in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="InternalGenericCommunicationStructure">
    <xs:sequence>
        <xs:element name="From" minOccurs="0">
            <xs:complexType>
                <xs:sequence>
                    <xs:any namespace="##targetNamespace" maxOccurs="unbounded" />
                </xs:sequence>
            </xs:complexType>
        </xs:element>
        <xs:element name="To" minOccurs="0">
            <xs:complexType>
                <xs:sequence>
                    <xs:any namespace="##targetNamespace" maxOccurs="unbounded" />
                </xs:sequence>
            </xs:complexType>
        </xs:element>
        <xs:element ref="EventIdentifier" minOccurs="0" />
        <xs:element ref="ElectionIdentifier" minOccurs="0" />
        <xs:element ref="ContestIdentifier" minOccurs="0" />
        <xs:element name="Messages" type="MessagesStructure" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
From nsA:From 0 (1)
To nsA:To 0 (1)
EventIdentifier nsA:EventIdentifier 0 (1)
ElectionIdentifier nsA:ElectionIdentifier 0 (1)
ContestIdentifier nsA:ContestIdentifier 0 (1)
Messages nsA:Messages 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:InternalGenericCommunication
