Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: ObjectType
Namespace: urn:oasis:names:tc:evs:schema:eml:ts
Containing Schema: emltimestamp.xsd
Abstract

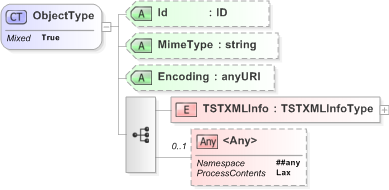

Collapse XSD Schema Diagram:
Drilldown into TSTXMLInfo in schema emltimestamp_xsd Drilldown into Encoding in schema emltimestamp_xsd Drilldown into MimeType in schema emltimestamp_xsd Drilldown into Id in schema emltimestamp_xsdXSD Diagram of ObjectType in schema emltimestamp_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="ObjectType" mixed="true">
    <xs:sequence>
        <xs:element name="TSTXMLInfo" type="TSTXMLInfoType" />
        <xs:any namespace="##any" processContents="lax" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="Id" type="xs:ID" use="optional" />
    <xs:attribute name="MimeType" type="xs:string" use="optional" />
    <xs:attribute name="Encoding" type="xs:anyURI" use="optional" />
    <!-- add a grep facet -->
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TSTXMLInfo ts:TSTXMLInfo (1) (1)
<xs:any> Allowed namespace: '##any' 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Id ts:Id Optional
MimeType ts:MimeType Optional
Encoding ts:Encoding Optional
Collapse Derivation Tree:
Collapse References:
ts:Object
Collapse Comments:
