Definition Type:	Element
Name:	OutgoingChannelOptions
Namespace:	urn:oasis:names:tc:evs:schema:eml
Type:	nsA:OutgoingGenericCommunicationStructure
Containing Schema:	360a-outgoingchanneloptions-v5-0.xsd
Abstract

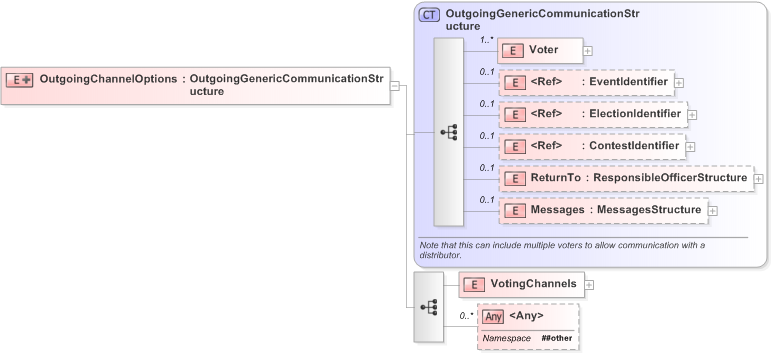

XSD Schema Diagram:

XSD Diagram of OutgoingChannelOptions in schema 360a-outgoingchanneloptions-v5-0_xsd (OASIS Election Markup Language (EML))

XSD Schema Code:

<xs:element name="OutgoingChannelOptions">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="OutgoingGenericCommunicationStructure">
                <xs:sequence>
                    <xs:element name="VotingChannels">
                        <xs:complexType>
                            <xs:sequence>
                                <xs:element ref="VotingChannel" maxOccurs="unbounded" />
                            </xs:sequence>
                        </xs:complexType>
                    </xs:element>
                    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
Voter	nsA:Voter	(1)	unbounded
EventIdentifier	nsA:EventIdentifier	0	(1)
ElectionIdentifier	nsA:ElectionIdentifier	0	(1)
ContestIdentifier	nsA:ContestIdentifier	0	(1)
ReturnTo	nsA:ReturnTo	0	(1)
Messages	nsA:Messages	0	(1)
VotingChannels	nsA:VotingChannels	(1)	(1)
<xs:any>	Allowed namespace: '##other'	0	unbounded

Derivation Tree:
	nsA:OutgoingGenericCommunicationStructure *OutgoingChannelOptions*
