Documentation for OASIS Election Markup Language (EML)
Definition Type: Element
Name: PhysicalLocation
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: emlcore-v5-0.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

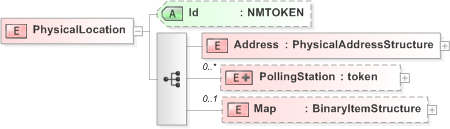

Collapse XSD Schema Diagram:
Drilldown into Map in schema emlcore-v5-0_xsd Drilldown into PollingStation in schema emlcore-v5-0_xsd Drilldown into Address in schema emlcore-v5-0_xsd Drilldown into Id in schema emlcore-v5-0_xsdXSD Diagram of PhysicalLocation in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="PhysicalLocation">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="Address" type="PhysicalAddressStructure" />
            <xs:element name="PollingStation" minOccurs="0" maxOccurs="unbounded">
                <xs:complexType>
                    <xs:simpleContent>
                        <xs:extension base="xs:token">
                            <xs:attribute name="Id" type="xs:NMTOKEN" use="optional" />
                        </xs:extension>
                    </xs:simpleContent>
                </xs:complexType>
            </xs:element>
            <xs:element name="Map" type="BinaryItemStructure" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="Id" type="xs:NMTOKEN" use="optional" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Address nsA:Address (1) (1)
PollingStation nsA:PollingStation 0 unbounded
Map nsA:Map 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Id nsA:Id Optional
