Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: PollingDistrictStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: emlcore-v5-0.xsd
Abstract

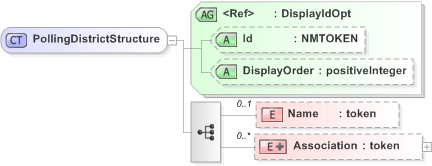

Collapse XSD Schema Diagram:
Drilldown into Association in schema emlcore-v5-0_xsd Drilldown into Name in schema emlcore-v5-0_xsd Drilldown into DisplayOrder in schema emlcore-v5-0_xsd Drilldown into Id in schema emlcore-v5-0_xsd Drilldown into DisplayIdOpt in schema emlcore-v5-0_xsdXSD Diagram of PollingDistrictStructure in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="PollingDistrictStructure">
    <xs:sequence>
        <xs:element name="Name" type="xs:token" minOccurs="0" />
        <xs:element name="Association" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
                <xs:simpleContent>
                    <xs:extension base="xs:token">
                        <xs:attribute name="Id" type="xs:token" use="optional" />
                    </xs:extension>
                </xs:simpleContent>
            </xs:complexType>
        </xs:element>
    </xs:sequence>
    <xs:attributeGroup ref="DisplayIdOpt" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name nsA:Name 0 (1)
Association nsA:Association 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Id nsA:Id Optional
DisplayOrder nsA:DisplayOrder Optional
Collapse Derivation Tree:
Collapse References:
nsA:PollingDistrict
Collapse Comments:
