Documentation for OASIS Election Markup Language (EML)
Definition Type: Element
Name: PremiseNumberRangeFrom
Namespace: urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
Containing Schema: xAL.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Start number details of the premise number range

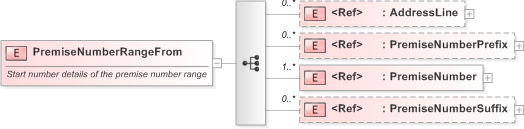

Collapse XSD Schema Diagram:
Drilldown into PremiseNumberSuffix in schema xal_xsd Drilldown into PremiseNumber in schema xal_xsd Drilldown into PremiseNumberPrefix in schema xal_xsd Drilldown into AddressLine in schema xal_xsdXSD Diagram of PremiseNumberRangeFrom in schema xal_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="PremiseNumberRangeFrom">
    <xs:annotation>
        <xs:documentation>Start number details of the premise number range</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="AddressLine" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="PremiseNumberPrefix" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="PremiseNumber" maxOccurs="unbounded" />
            <xs:element ref="PremiseNumberSuffix" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AddressLine xal:AddressLine 0 unbounded
PremiseNumberPrefix xal:PremiseNumberPrefix 0 unbounded
PremiseNumber xal:PremiseNumber (1) unbounded
PremiseNumberSuffix xal:PremiseNumberSuffix 0 unbounded
