Documentation for OASIS Election Markup Language (EML)
Definition Type: Element
Name: ProcessingUnits
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: emlcore-v5-0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

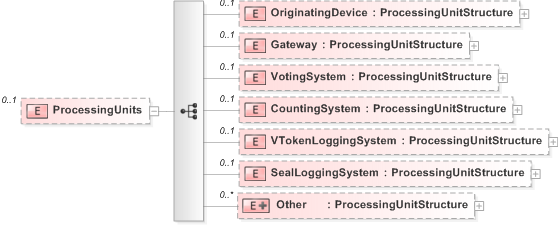

Collapse XSD Schema Diagram:
Drilldown into Other in schema emlcore-v5-0_xsd Drilldown into SealLoggingSystem in schema emlcore-v5-0_xsd Drilldown into VTokenLoggingSystem in schema emlcore-v5-0_xsd Drilldown into CountingSystem in schema emlcore-v5-0_xsd Drilldown into VotingSystem in schema emlcore-v5-0_xsd Drilldown into Gateway in schema emlcore-v5-0_xsd Drilldown into OriginatingDevice in schema emlcore-v5-0_xsdXSD Diagram of ProcessingUnits in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="ProcessingUnits" minOccurs="0">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="OriginatingDevice" type="ProcessingUnitStructure" minOccurs="0" />
            <xs:element name="Gateway" type="ProcessingUnitStructure" minOccurs="0" />
            <xs:element name="VotingSystem" type="ProcessingUnitStructure" minOccurs="0" />
            <xs:element name="CountingSystem" type="ProcessingUnitStructure" minOccurs="0" />
            <xs:element name="VTokenLoggingSystem" type="ProcessingUnitStructure" minOccurs="0" />
            <xs:element name="SealLoggingSystem" type="ProcessingUnitStructure" minOccurs="0" />
            <xs:element name="Other" minOccurs="0" maxOccurs="unbounded">
                <xs:complexType>
                    <xs:complexContent>
                        <xs:extension base="ProcessingUnitStructure">
                            <xs:attribute name="Type" type="xs:token" use="required" />
                        </xs:extension>
                    </xs:complexContent>
                </xs:complexType>
            </xs:element>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OriginatingDevice nsA:OriginatingDevice 0 (1)
Gateway nsA:Gateway 0 (1)
VotingSystem nsA:VotingSystem 0 (1)
CountingSystem nsA:CountingSystem 0 (1)
VTokenLoggingSystem nsA:VTokenLoggingSystem 0 (1)
SealLoggingSystem nsA:SealLoggingSystem 0 (1)
Other nsA:Other 0 unbounded
