Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: ProcessingUnitStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: emlcore-v5-0.xsd
Abstract

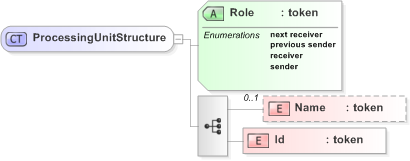

Collapse XSD Schema Diagram:
Drilldown into Id in schema emlcore-v5-0_xsd Drilldown into Name in schema emlcore-v5-0_xsd Drilldown into Role in schema emlcore-v5-0_xsdXSD Diagram of ProcessingUnitStructure in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="ProcessingUnitStructure">
    <xs:sequence>
        <xs:element name="Name" type="xs:token" minOccurs="0" />
        <xs:element name="Id" type="xs:token" />
    </xs:sequence>
    <xs:attribute name="Role" use="required">
        <xs:simpleType>
            <xs:restriction base="xs:token">
                <xs:enumeration value="next receiver" />
                <xs:enumeration value="previous sender" />
                <xs:enumeration value="receiver" />
                <xs:enumeration value="sender" />
                <xs:enumeration value="" />
            </xs:restriction>
        </xs:simpleType>
    </xs:attribute>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name nsA:Name 0 (1)
Id nsA:Id (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Role nsA:Role Required
Collapse Derivation Tree:
Collapse References:
nsA:CountingSystem, nsA:Destination, nsA:Gateway, nsA:OriginatingDevice, nsA:Other, nsA:RaisedBy, nsA:SealLoggingSystem, nsA:Source, nsA:VotingSystem, nsA:VTokenLoggingSystem
