Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: ProposalStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: emlcore-v5-0.xsd
Abstract

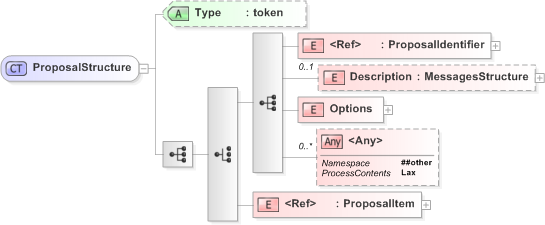

Collapse XSD Schema Diagram:
Drilldown into ProposalItem in schema emlcore-v5-0_xsd Drilldown into Options in schema emlcore-v5-0_xsd Drilldown into Description in schema emlcore-v5-0_xsd Drilldown into ProposalIdentifier in schema emlcore-v5-0_xsd Drilldown into Type in schema emlcore-v5-0_xsdXSD Diagram of ProposalStructure in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="ProposalStructure">
    <xs:sequence>
        <xs:choice>
            <xs:sequence>
                <xs:element ref="ProposalIdentifier" />
                <xs:element name="Description" type="MessagesStructure" minOccurs="0" />
                <xs:element name="Options">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element ref="ReferendumOptionIdentifier" maxOccurs="unbounded" />
                        </xs:sequence>
                    </xs:complexType>
                </xs:element>
                <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
            <xs:element ref="ProposalItem" />
        </xs:choice>
    </xs:sequence>
    <xs:attribute name="Type" type="xs:token" use="optional" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProposalIdentifier nsA:ProposalIdentifier (1) (1)
Description nsA:Description 0 (1)
Options nsA:Options (1) (1)
ProposalItem nsA:ProposalItem (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Type nsA:Type Optional
Collapse Derivation Tree:
Collapse References:
nsA:Proposal
