Documentation for OASIS Election Markup Language (EML)
Definition Type: Element
Name: Proxy
Namespace: urn:oasis:names:tc:evs:schema:eml
Type: nsA:ProxyStructure
Containing Schema: 340-410-430-include-v5-0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

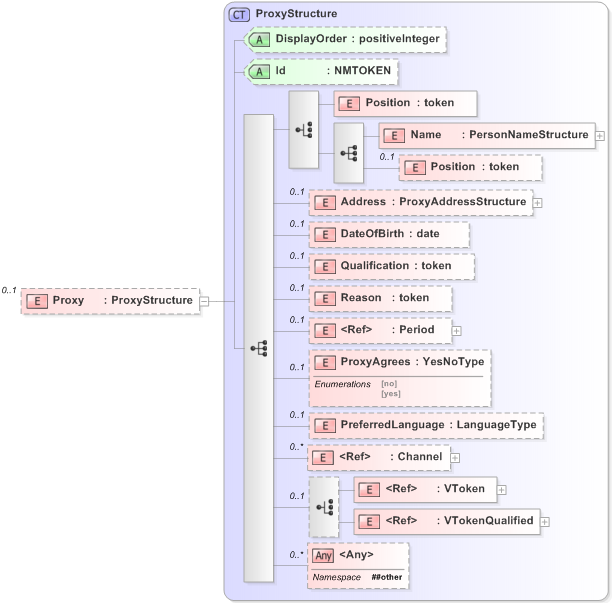

Collapse XSD Schema Diagram:
Drilldown into VTokenQualified in schema emlcore-v5-0_xsd Drilldown into VToken in schema emlcore-v5-0_xsd Drilldown into Channel in schema emlcore-v5-0_xsd Drilldown into PreferredLanguage in schema emlcore-v5-0_xsd Drilldown into ProxyAgrees in schema emlcore-v5-0_xsd Drilldown into Period in schema emlcore-v5-0_xsd Drilldown into Reason in schema emlcore-v5-0_xsd Drilldown into Qualification in schema emlcore-v5-0_xsd Drilldown into DateOfBirth in schema emlcore-v5-0_xsd Drilldown into Address in schema emlcore-v5-0_xsd Drilldown into Position in schema emlcore-v5-0_xsd Drilldown into Name in schema emlcore-v5-0_xsd Drilldown into Position in schema emlcore-v5-0_xsd Drilldown into Id in schema emlcore-v5-0_xsd Drilldown into DisplayOrder in schema emlcore-v5-0_xsd Drilldown into ProxyStructure in schema emlcore-v5-0_xsdXSD Diagram of Proxy in schema 340-410-430-include-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="Proxy" type="ProxyStructure" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Position nsA:Position (1) (1)
Name nsA:Name (1) (1)
Position nsA:Position 0 (1)
Address nsA:Address 0 (1)
DateOfBirth nsA:DateOfBirth 0 (1)
Qualification nsA:Qualification 0 (1)
Reason nsA:Reason 0 (1)
Period nsA:Period 0 (1)
ProxyAgrees nsA:ProxyAgrees 0 (1)
PreferredLanguage nsA:PreferredLanguage 0 (1)
Channel nsA:Channel 0 unbounded
VToken nsA:VToken (1) (1)
VTokenQualified nsA:VTokenQualified (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
DisplayOrder nsA:DisplayOrder Optional
Id nsA:Id Optional
Collapse Derivation Tree:
Collapse Comments:
