Documentation for OASIS Election Markup Language (EML)
Definition Type: Element
Name: Qualifier
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: 330-electionlist-v5-0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

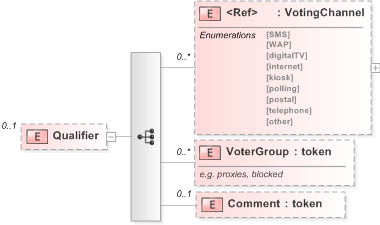

Collapse XSD Schema Diagram:
Drilldown into Comment in schema 330-electionlist-v5-0_xsd Drilldown into VoterGroup in schema 330-electionlist-v5-0_xsd Drilldown into VotingChannel in schema emlcore-v5-0_xsdXSD Diagram of Qualifier in schema 330-electionlist-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="Qualifier" minOccurs="0">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="VotingChannel" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="VoterGroup" type="xs:token" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>e.g. proxies, blocked</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="Comment" type="xs:token" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VotingChannel nsA:VotingChannel 0 unbounded
VoterGroup nsA:VoterGroup 0 unbounded
Comment nsA:Comment 0 (1)
