Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: ResponseStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: 130-480-include-v5-0.xsd
Abstract
Collapse XSD Schema Diagram:

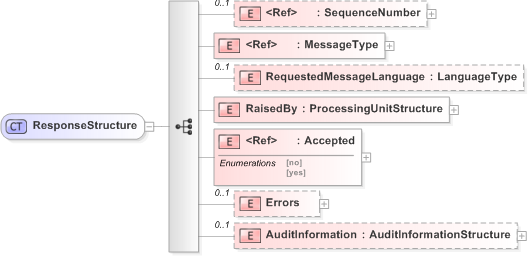

Drilldown into AuditInformation in schema 130-480-include-v5-0_xsd Drilldown into Errors in schema 130-480-include-v5-0_xsd Drilldown into Accepted in schema emlcore-v5-0_xsd Drilldown into RaisedBy in schema 130-480-include-v5-0_xsd Drilldown into RequestedMessageLanguage in schema 130-480-include-v5-0_xsd Drilldown into MessageType in schema emlcore-v5-0_xsd Drilldown into SequenceNumber in schema emlcore-v5-0_xsdXSD Diagram of ResponseStructure in schema 130-480-include-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="ResponseStructure">
    <xs:sequence>
        <xs:element ref="SequenceNumber" minOccurs="0" />
        <xs:element ref="MessageType" />
        <xs:element name="RequestedMessageLanguage" type="LanguageType" minOccurs="0" />
        <xs:element name="RaisedBy" type="ProcessingUnitStructure" />
        <xs:element ref="Accepted" />
        <xs:element name="Errors" minOccurs="0">
            <xs:complexType>
                <xs:sequence>
                    <xs:element name="Error" maxOccurs="unbounded">
                        <xs:complexType>
                            <xs:sequence>
                                <xs:element name="ErrorCode" type="ErrorCodeType" />
                                <xs:element name="Description" type="MessagesStructure" minOccurs="0" />
                                <xs:element name="ErrorLocation" type="xs:token" minOccurs="0" />
                            </xs:sequence>
                        </xs:complexType>
                    </xs:element>
                </xs:sequence>
            </xs:complexType>
        </xs:element>
        <xs:element name="AuditInformation" type="AuditInformationStructure" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SequenceNumber nsA:SequenceNumber 0 (1)
MessageType nsA:MessageType (1) (1)
RequestedMessageLanguage nsA:RequestedMessageLanguage 0 (1)
RaisedBy nsA:RaisedBy (1) (1)
Accepted nsA:Accepted (1) (1)
Errors nsA:Errors 0 (1)
AuditInformation nsA:AuditInformation 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:Response, nsA:Response
