Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: ResponsibleOfficerStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: emlcore-v5-0.xsd
Abstract

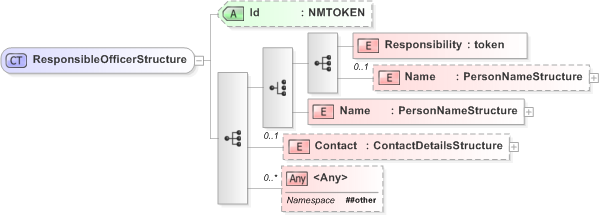

Collapse XSD Schema Diagram:
Drilldown into Contact in schema emlcore-v5-0_xsd Drilldown into Name in schema emlcore-v5-0_xsd Drilldown into Name in schema emlcore-v5-0_xsd Drilldown into Responsibility in schema emlcore-v5-0_xsd Drilldown into Id in schema emlcore-v5-0_xsdXSD Diagram of ResponsibleOfficerStructure in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="ResponsibleOfficerStructure">
    <xs:sequence>
        <xs:choice>
            <xs:sequence>
                <xs:element name="Responsibility" type="xs:token" />
                <xs:element name="Name" type="PersonNameStructure" minOccurs="0" />
            </xs:sequence>
            <xs:element name="Name" type="PersonNameStructure" />
        </xs:choice>
        <xs:element name="Contact" type="ContactDetailsStructure" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute name="Id" type="xs:NMTOKEN" use="optional" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Responsibility nsA:Responsibility (1) (1)
Name nsA:Name 0 (1)
Name nsA:Name (1) (1)
Contact nsA:Contact 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Id nsA:Id Optional
Collapse Derivation Tree:
Collapse References:
nsA:Recipient, nsA:ResponsibleOfficernsA:ReturnTo,
