Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: TelephoneStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: emlcore-v5-0.xsd
Abstract

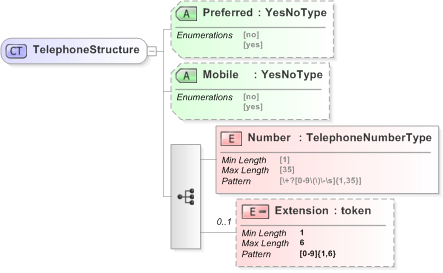

Collapse XSD Schema Diagram:
Drilldown into Extension in schema emlcore-v5-0_xsd Drilldown into Number in schema emlcore-v5-0_xsd Drilldown into Mobile in schema emlcore-v5-0_xsd Drilldown into Preferred in schema emlcore-v5-0_xsdXSD Diagram of TelephoneStructure in schema emlcore-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="TelephoneStructure">
    <xs:sequence>
        <xs:element name="Number" type="TelephoneNumberType" />
        <xs:element name="Extension" minOccurs="0">
            <xs:simpleType>
                <xs:restriction base="xs:token">
                    <xs:maxLength value="6" />
                    <xs:minLength value="1" />
                    <xs:pattern value="[0-9]{1,6}" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
    </xs:sequence>
    <xs:attribute name="Preferred" type="YesNoType" use="optional" />
    <xs:attribute name="Mobile" type="YesNoType" use="optional" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Number nsA:Number (1) (1)
Extension nsA:Extension 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Preferred nsA:Preferred Optional
Mobile nsA:Mobile Optional
Collapse Derivation Tree:
Collapse References:
nsA:Fax, nsA:Telephone
Collapse Comments:
