Definition Type: Element
Name: ThoroughfareNumberSuffix
Namespace: urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
Containing Schema: xAL.xsd
Abstract
Documentation:
Suffix after the number. A in 12A Archer Street

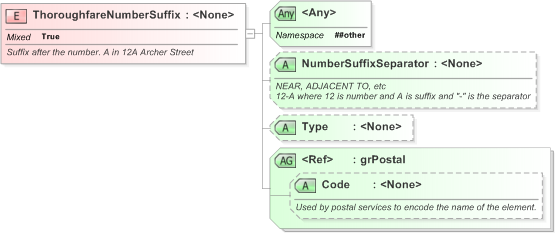

Collapse XSD Schema Diagram:
Drilldown into Code in schema xal_xsd Drilldown into grPostal in schema xal_xsd Drilldown into Type in schema xal_xsd Drilldown into NumberSuffixSeparator in schema xal_xsdXSD Diagram of ThoroughfareNumberSuffix in schema xal_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:element name="ThoroughfareNumberSuffix">
    <xs:annotation>
        <xs:documentation>Suffix after the number. A in 12A Archer Street</xs:documentation>
    </xs:annotation>
    <xs:complexType mixed="true">
        <xs:attribute name="NumberSuffixSeparator">
            <xs:annotation>
                <xs:documentation>NEAR, ADJACENT TO, etc</xs:documentation>
                <xs:documentation>12-A where 12 is number and A is suffix and "-" is the separator</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="Type" />
        <xs:attributeGroup ref="grPostal" />
        <xs:anyAttribute namespace="##other" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
NumberSuffixSeparator xal:NumberSuffixSeparator (Optional)
Type xal:Type (Optional)
Code xal:Code (Optional)
<anyAttribute> Allowed namespace: '##other'
