Docs for schema item Voter in OASIS Election Markup Language (EML)

Documentation for OASIS Election Markup Language (EML)

Definition Type:	Element
Name:	Voter
Namespace:	urn:oasis:names:tc:evs:schema:eml
Type:	nsA:VoterIdentificationStructure
Containing Schema:	340-pollinginformation-v5-0.xsd
MinOccurs	0
MaxOccurs	(1)
Abstract

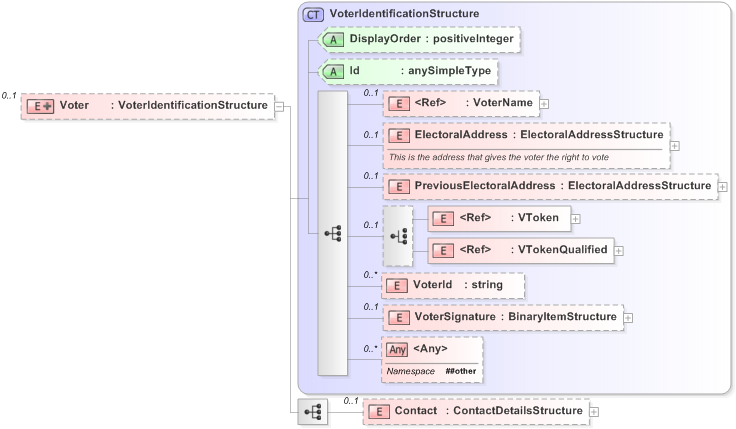

XSD Schema Diagram:

XSD Diagram of Voter in schema 340-pollinginformation-v5-0_xsd (OASIS Election Markup Language (EML))

XSD Schema Code:

<xs:element name="Voter" minOccurs="0">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="VoterIdentificationStructure">
                <xs:sequence>
                    <xs:element name="Contact" type="ContactDetailsStructure" minOccurs="0" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
VoterName	nsA:VoterName	0	(1)
ElectoralAddress	nsA:ElectoralAddress	0	(1)
PreviousElectoralAddress	nsA:PreviousElectoralAddress	0	(1)
VToken	nsA:VToken	(1)	(1)
VTokenQualified	nsA:VTokenQualified	(1)	(1)
VoterId	nsA:VoterId	0	unbounded
VoterSignature	nsA:VoterSignature	0	(1)
Contact	nsA:Contact	0	(1)
<xs:any>	Allowed namespace: '##other'	0	unbounded

Child Attributes:

Name	Type	Default Value	Use
DisplayOrder	nsA:DisplayOrder		Optional
Id	nsA:Id		Optional

Derivation Tree:
	nsA:VoterIdentificationStructure *Voter*
