Documentation for OASIS Election Markup Language (EML)
Definition Type: ComplexType
Name: VoterRegistrationStructure
Namespace: urn:oasis:names:tc:evs:schema:eml
Containing Schema: 120-310-330-include-v5-0.xsd
Abstract

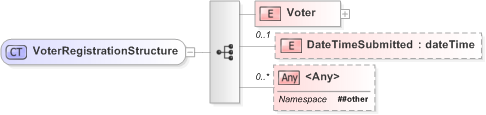

Collapse XSD Schema Diagram:
Drilldown into DateTimeSubmitted in schema 120-310-330-include-v5-0_xsd Drilldown into Voter in schema 120-310-330-include-v5-0_xsdXSD Diagram of VoterRegistrationStructure in schema 120-310-330-include-v5-0_xsd (OASIS Election Markup Language (EML))
Collapse XSD Schema Code:
<xs:complexType name="VoterRegistrationStructure">
    <xs:sequence>
        <xs:element name="Voter">
            <xs:complexType>
                <xs:sequence>
                    <xs:element name="VoterIdentification" type="VoterIdentificationStructure" />
                    <xs:element name="VoterInformation" type="VoterInformationStructure" minOccurs="0" />
                    <xs:element name="ProofOfId" minOccurs="0">
                        <xs:complexType>
                            <xs:sequence>
                                <xs:any namespace="##other" />
                            </xs:sequence>
                        </xs:complexType>
                    </xs:element>
                    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
                </xs:sequence>
            </xs:complexType>
        </xs:element>
        <xs:element name="DateTimeSubmitted" type="xs:dateTime" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Voter nsA:Voter (1) (1)
DateTimeSubmitted nsA:DateTimeSubmitted 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:VoterRegistration, nsA:VoterRegistration
