Definition Type: Element
Name: geoAreaDetails
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NAR_1.3-spec-Framework-Core.xsd
Abstract
Documentation:
A group of properties specific to a geopolitical area

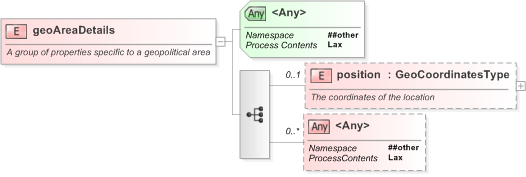

Collapse XSD Schema Diagram:
Drilldown into position in schema nar_1_3-spec-framework-core_xsdXSD Diagram of geoAreaDetails in schema nar_1_3-spec-framework-core_xsd (EventsML - News Exchange Format)
Collapse XSD Schema Code:
<xs:element name="geoAreaDetails">
    <xs:annotation>
        <xs:documentation>A group of properties specific to a geopolitical area</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="position" type="GeoCoordinatesType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The coordinates of the location</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
position nsA:position 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
