Documentation for EventsML - News Exchange Format
Definition Type: ComplexType
Name: GeoCoordinatesType
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NAR_1.3-spec-Framework-Core.xsd
Abstract
Documentation:
The type for geographic coordinates (Type defined in this XML Schema only)

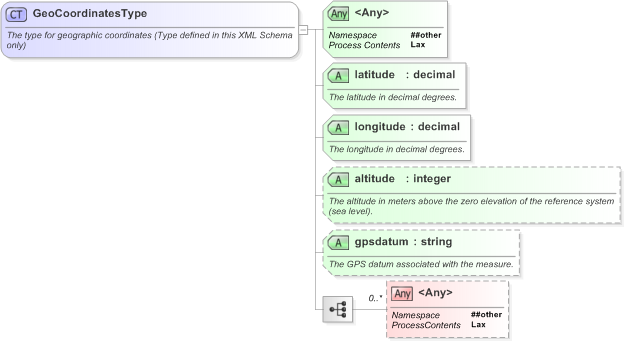

Collapse XSD Schema Diagram:
Drilldown into gpsdatum in schema nar_1_3-spec-framework-core_xsd Drilldown into altitude in schema nar_1_3-spec-framework-core_xsd Drilldown into longitude in schema nar_1_3-spec-framework-core_xsd Drilldown into latitude in schema nar_1_3-spec-framework-core_xsdXSD Diagram of GeoCoordinatesType in schema nar_1_3-spec-framework-core_xsd (EventsML - News Exchange Format)
Collapse XSD Schema Code:
<xs:complexType name="GeoCoordinatesType">
    <xs:annotation>
        <xs:documentation>The type for geographic coordinates (Type defined in this XML Schema only)</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute name="latitude" type="xs:decimal" use="required">
        <xs:annotation>
            <xs:documentation>The latitude in decimal degrees.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="longitude" type="xs:decimal" use="required">
        <xs:annotation>
            <xs:documentation>The longitude in decimal degrees.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="altitude" type="xs:integer">
        <xs:annotation>
            <xs:documentation>The altitude in meters above the zero elevation of the reference system (sea level).</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="gpsdatum" type="xs:string">
        <xs:annotation>
            <xs:documentation>The GPS datum associated with the measure.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
latitude nsA:latitude Required
longitude nsA:longitude Required
altitude nsA:altitude (Optional)
gpsdatum nsA:gpsdatum (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:position, nsA:position
