Definition Type: Element
Name: group
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NAR_1.3-spec-PackageItem-Power.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
A mixed set of group references and links

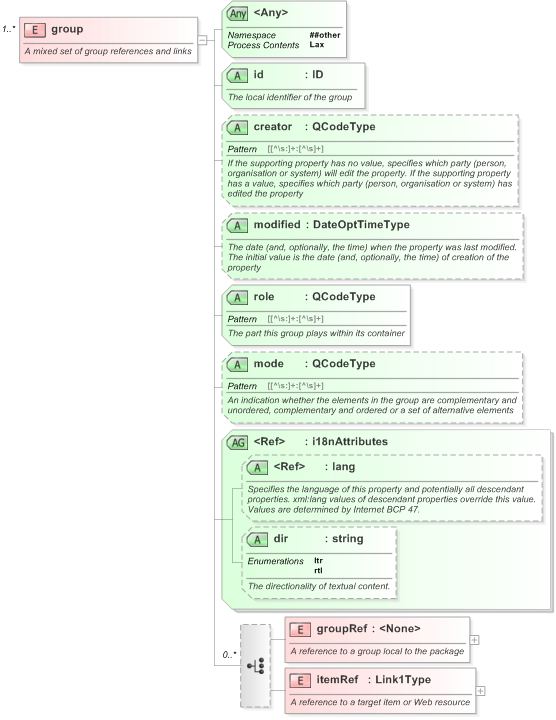

Collapse XSD Schema Diagram:
Drilldown into itemRef in schema nar_1_3-spec-packageitem-power_xsd Drilldown into groupRef in schema nar_1_3-spec-packageitem-power_xsd Drilldown into dir in schema nar_1_3-spec-framework-power_xsd Drilldown into lang in schema xml_xsd Drilldown into i18nAttributes in schema nar_1_3-spec-framework-power_xsd Drilldown into mode in schema nar_1_3-spec-packageitem-power_xsd Drilldown into role in schema nar_1_3-spec-packageitem-power_xsd Drilldown into modified in schema nar_1_3-spec-packageitem-power_xsd Drilldown into creator in schema nar_1_3-spec-packageitem-power_xsd Drilldown into id in schema nar_1_3-spec-packageitem-power_xsdXSD Diagram of group in schema nar_1_3-spec-packageitem-power_xsd (EventsML - News Exchange Format)
Collapse XSD Schema Code:
<xs:element name="group" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>A mixed set of group references and links</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:element name="groupRef">
                <xs:annotation>
                    <xs:documentation>A reference to a group local to the package</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:attribute name="idref" type="xs:IDREF" use="required">
                        <xs:annotation>
                            <xs:documentation>The reference to the id of a local group</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                    <xs:anyAttribute namespace="##other" processContents="lax" />
                </xs:complexType>
            </xs:element>
            <xs:element name="itemRef" type="Link1Type">
                <xs:annotation>
                    <xs:documentation>A reference to a target item or Web resource</xs:documentation>
                </xs:annotation>
            </xs:element>
        </xs:choice>
        <xs:attribute name="id" type="xs:ID" use="required">
            <xs:annotation>
                <xs:documentation>The local identifier of the group</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="creator" type="QCodeType">
            <xs:annotation>
                <xs:documentation>If the supporting property has no value, specifies which party (person, organisation or system) will edit the property. If the supporting property has a value, specifies which party (person, organisation or system) has edited the property</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="modified" type="DateOptTimeType">
            <xs:annotation>
                <xs:documentation>The date (and, optionally, the time) when the property was last modified. The initial value is the date (and, optionally, the time) of creation of the property</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="role" type="QCodeType" use="required">
            <xs:annotation>
                <xs:documentation>The part this group plays within its container</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="mode" type="QCodeType">
            <xs:annotation>
                <xs:documentation>An indication whether the elements in the group are complementary and unordered, complementary and ordered or a set of alternative elements</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attributeGroup ref="i18nAttributes" />
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
groupRef nsA:groupRef (1) (1)
itemRef nsA:itemRef (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Required
creator nsA:creator (Optional)
modified nsA:modified (Optional)
role nsA:role Required
mode nsA:mode (Optional)
lang nsB:lang (Optional)
dir nsA:dir (Optional)
<anyAttribute> Allowed namespace: '##other'
