Definition Type: Element
Name: header
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NAR_1.3-spec-NewsMessage-Core.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
A group of properties providing information about the exchange.

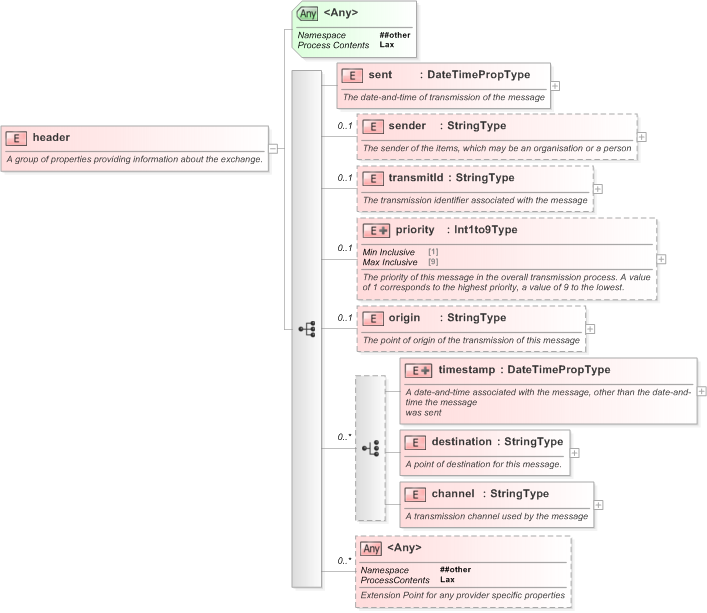

Collapse XSD Schema Diagram:
Drilldown into channel in schema nar_1_3-spec-newsmessage-core_xsd Drilldown into destination in schema nar_1_3-spec-newsmessage-core_xsd Drilldown into timestamp in schema nar_1_3-spec-newsmessage-core_xsd Drilldown into origin in schema nar_1_3-spec-newsmessage-core_xsd Drilldown into priority in schema nar_1_3-spec-newsmessage-core_xsd Drilldown into transmitId in schema nar_1_3-spec-newsmessage-core_xsd Drilldown into sender in schema nar_1_3-spec-newsmessage-core_xsd Drilldown into sent in schema nar_1_3-spec-newsmessage-core_xsdXSD Diagram of header in schema nar_1_3-spec-newsmessage-core_xsd (EventsML - News Exchange Format)
Collapse XSD Schema Code:
<xs:element name="header">
    <xs:annotation>
        <xs:documentation>A group of properties providing information about the exchange.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="sent" type="DateTimePropType">
                <xs:annotation>
                    <xs:documentation>The date-and-time of transmission of the message</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="sender" type="StringType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The sender of the items, which may be an organisation or a person</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="transmitId" type="StringType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The transmission identifier associated with the message</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="priority" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The priority of this message in the overall transmission process. A value of 1 corresponds to the highest priority, a value of 9 to the lowest.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:simpleContent>
                        <xs:extension base="Int1to9Type">
                            <xs:anyAttribute namespace="##other" processContents="lax" />
                        </xs:extension>
                    </xs:simpleContent>
                </xs:complexType>
            </xs:element>
            <xs:element name="origin" type="StringType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The point of origin of the transmission of this message</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <xs:element name="timestamp">
                    <xs:annotation>
                        <xs:documentation>A date-and-time associated with the message, other than the date-and-time the message
was sent</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                        <xs:simpleContent>
                            <xs:extension base="DateTimePropType">
                                <xs:attribute name="role" type="xs:string">
                                    <xs:annotation>
                                        <xs:documentation>A refinement of the semantics of the property</xs:documentation>
                                    </xs:annotation>
                                </xs:attribute>
                            </xs:extension>
                        </xs:simpleContent>
                        <!-- NAR 1.2 erratum 1 correction: on timestamp, complexContent replaced by simpleContent -->
                    </xs:complexType>
                </xs:element>
                <xs:element name="destination" type="StringType">
                    <xs:annotation>
                        <xs:documentation>A point of destination for this message.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="channel" type="StringType">
                    <xs:annotation>
                        <xs:documentation>A transmission channel used by the message</xs:documentation>
                    </xs:annotation>
                </xs:element>
            </xs:choice>
            <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Extension Point for any provider specific properties</xs:documentation>
                </xs:annotation>
            </xs:any>
        </xs:sequence>
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sent nsA:sent (1) (1)
sender nsA:sender 0 (1)
transmitId nsA:transmitId 0 (1)
priority nsA:priority 0 (1)
origin nsA:origin 0 (1)
timestamp nsA:timestamp (1) (1)
destination nsA:destination (1) (1)
channel nsA:channel (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
