Documentation for EventsML - News Exchange Format
Definition Type: ComplexType
Name: RelatedConceptType
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsA:FlexPropType
Containing Schema: NAR_1.3-spec-Framework-Power.xsd
Abstract
Documentation:
The type for an identifier of a related concept

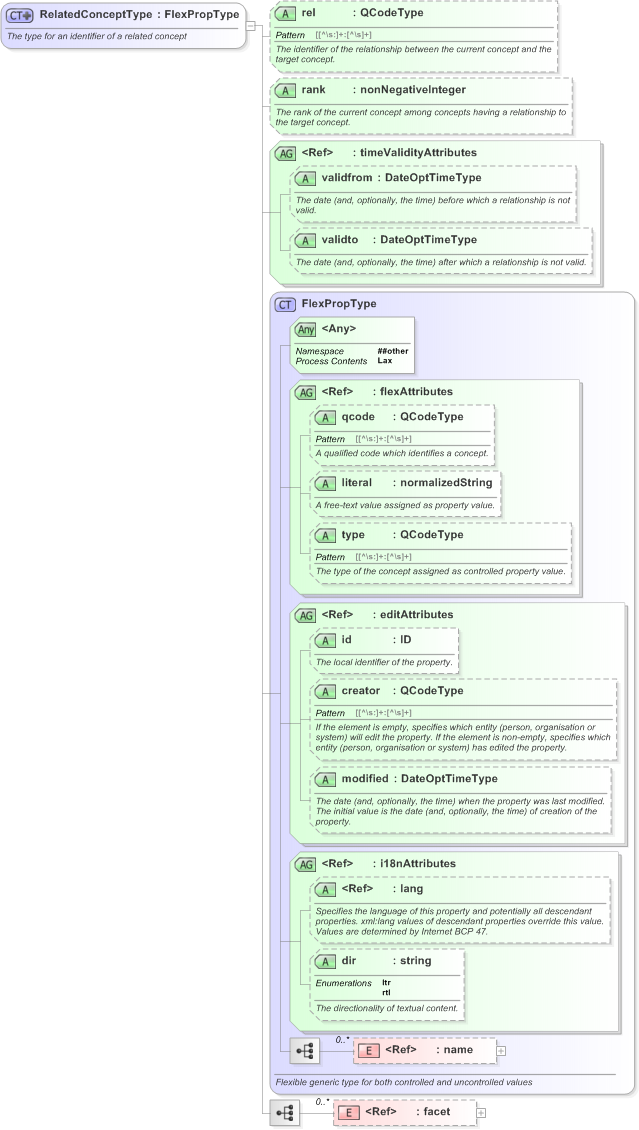

Collapse XSD Schema Diagram:
Drilldown into facet in schema nar_1_3-spec-framework-power_xsd Drilldown into name in schema nar_1_3-spec-framework-power_xsd Drilldown into dir in schema nar_1_3-spec-framework-power_xsd Drilldown into lang in schema xml_xsd Drilldown into i18nAttributes in schema nar_1_3-spec-framework-power_xsd Drilldown into modified in schema nar_1_3-spec-framework-power_xsd Drilldown into creator in schema nar_1_3-spec-framework-power_xsd Drilldown into id in schema nar_1_3-spec-framework-power_xsd Drilldown into editAttributes in schema nar_1_3-spec-framework-power_xsd Drilldown into type in schema nar_1_3-spec-framework-power_xsd Drilldown into literal in schema nar_1_3-spec-framework-power_xsd Drilldown into qcode in schema nar_1_3-spec-framework-power_xsd Drilldown into flexAttributes in schema nar_1_3-spec-framework-power_xsd Drilldown into FlexPropType in schema nar_1_3-spec-framework-power_xsd Drilldown into validto in schema nar_1_3-spec-framework-power_xsd Drilldown into validfrom in schema nar_1_3-spec-framework-power_xsd Drilldown into timeValidityAttributes in schema nar_1_3-spec-framework-power_xsd Drilldown into rank in schema nar_1_3-spec-framework-power_xsd Drilldown into rel in schema nar_1_3-spec-framework-power_xsdXSD Diagram of RelatedConceptType in schema nar_1_3-spec-framework-power_xsd (EventsML - News Exchange Format)
Collapse XSD Schema Code:
<xs:complexType name="RelatedConceptType">
    <xs:annotation>
        <xs:documentation>The type for an identifier of a related concept </xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="FlexPropType">
            <xs:sequence>
                <xs:element ref="facet" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
            <xs:attribute name="rel" type="QCodeType">
                <xs:annotation>
                    <xs:documentation>The identifier of the relationship between the current concept and the target concept.</xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:attribute name="rank" type="xs:nonNegativeInteger">
                <xs:annotation>
                    <xs:documentation>The rank of the current concept among concepts having a relationship to the target concept.</xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:attributeGroup ref="timeValidityAttributes" />
        </xs:extension>
        <!-- v1.2 : change the choice for a sequence-->
        <!-- v1.2 : add rank-->
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name 0 unbounded
facet nsA:facet 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
qcode nsA:qcode (Optional)
literal nsA:literal (Optional)
type nsA:type (Optional)
id nsA:id (Optional)
creator nsA:creator (Optional)
modified nsA:modified (Optional)
lang nsB:lang (Optional)
dir nsA:dir (Optional)
rel nsA:rel (Optional)
rank nsA:rank (Optional)
validfrom nsA:validfrom (Optional)
validto nsA:validto (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:broader, nsA:narrowernsA:RelatedConceptBagType,
