Definition Type: Element
Name: ruby
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NAR_1.3-spec-Framework-Power.xsd
Abstract
Documentation:
Simple W3C Ruby Annotation - see http://www.w3.org/TR/ruby/#simple-ruby1

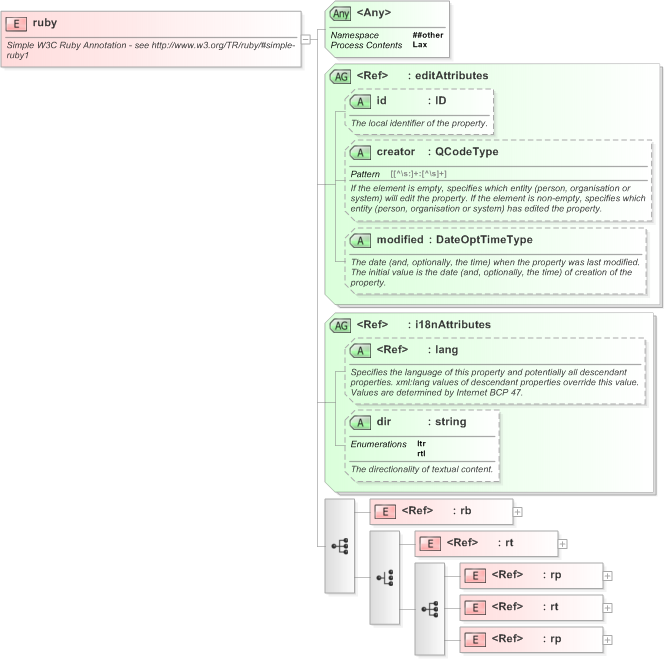

Collapse XSD Schema Diagram:
Drilldown into rp in schema nar_1_3-spec-framework-power_xsd Drilldown into rt in schema nar_1_3-spec-framework-power_xsd Drilldown into rp in schema nar_1_3-spec-framework-power_xsd Drilldown into rt in schema nar_1_3-spec-framework-power_xsd Drilldown into rb in schema nar_1_3-spec-framework-power_xsd Drilldown into dir in schema nar_1_3-spec-framework-power_xsd Drilldown into lang in schema xml_xsd Drilldown into i18nAttributes in schema nar_1_3-spec-framework-power_xsd Drilldown into modified in schema nar_1_3-spec-framework-power_xsd Drilldown into creator in schema nar_1_3-spec-framework-power_xsd Drilldown into id in schema nar_1_3-spec-framework-power_xsd Drilldown into editAttributes in schema nar_1_3-spec-framework-power_xsdXSD Diagram of ruby in schema nar_1_3-spec-framework-power_xsd (EventsML - News Exchange Format)
Collapse XSD Schema Code:
<xs:element name="ruby">
    <xs:annotation>
        <xs:documentation>Simple W3C Ruby Annotation - see http://www.w3.org/TR/ruby/#simple-ruby1</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:annotation>
            <xs:documentation>Simple W3C Ruby Annotation - see http://www.w3.org/TR/ruby/. </xs:documentation>
        </xs:annotation>
        <xs:sequence>
            <xs:element ref="rb" />
            <xs:choice>
                <xs:element ref="rt" />
                <xs:sequence>
                    <xs:element ref="rp" />
                    <xs:element ref="rt" />
                    <xs:element ref="rp" />
                </xs:sequence>
            </xs:choice>
        </xs:sequence>
        <xs:attributeGroup ref="editAttributes" />
        <xs:attributeGroup ref="i18nAttributes" />
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rb nsA:rb (1) (1)
rt nsA:rt (1) (1)
rp nsA:rp (1) (1)
rt nsA:rt (1) (1)
rp nsA:rp (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
creator nsA:creator (Optional)
modified nsA:modified (Optional)
lang nsB:lang (Optional)
dir nsA:dir (Optional)
<anyAttribute> Allowed namespace: '##other'
