Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: Advertisement_message_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:Abstract_message_t
Containing Schema: fixml-indications-base-4-4.xsd
Abstract
Documentation:
Advertisement can be found in Volume3 of the specification

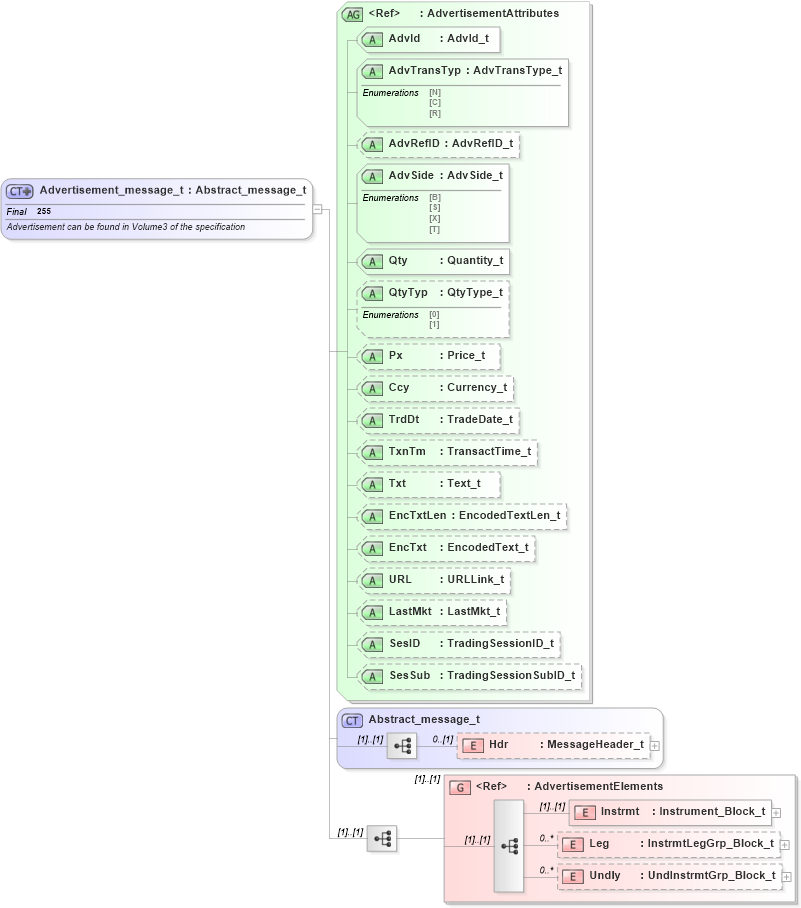

Collapse XSD Schema Diagram:
Drilldown into Undly in schema fixml-indications-base-4-4_xsd Drilldown into Leg in schema fixml-indications-base-4-4_xsd Drilldown into Instrmt in schema fixml-indications-base-4-4_xsd Drilldown into AdvertisementElements in schema fixml-indications-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into SesSub in schema fixml-indications-base-4-4_xsd Drilldown into SesID in schema fixml-indications-base-4-4_xsd Drilldown into LastMkt in schema fixml-indications-base-4-4_xsd Drilldown into URL in schema fixml-indications-base-4-4_xsd Drilldown into EncTxt in schema fixml-indications-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-indications-base-4-4_xsd Drilldown into Txt in schema fixml-indications-base-4-4_xsd Drilldown into TxnTm in schema fixml-indications-base-4-4_xsd Drilldown into TrdDt in schema fixml-indications-base-4-4_xsd Drilldown into Ccy in schema fixml-indications-base-4-4_xsd Drilldown into Px in schema fixml-indications-base-4-4_xsd Drilldown into QtyTyp in schema fixml-indications-base-4-4_xsd Drilldown into Qty in schema fixml-indications-base-4-4_xsd Drilldown into AdvSide in schema fixml-indications-base-4-4_xsd Drilldown into AdvRefID in schema fixml-indications-base-4-4_xsd Drilldown into AdvTransTyp in schema fixml-indications-base-4-4_xsd Drilldown into AdvId in schema fixml-indications-base-4-4_xsd Drilldown into AdvertisementAttributes in schema fixml-indications-base-4-4_xsdXSD Diagram of Advertisement_message_t in schema fixml-indications-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="Advertisement_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">Advertisement can be found in Volume3 of the specification
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="Advertisement" ComponentType="Message" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="AdvertisementElements" />
            </xs:sequence>
            <xs:attributeGroup ref="AdvertisementAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Instrmt nsA:Instrmt (1) (1)
Leg nsA:Leg 0 unbounded
Undly nsA:Undly 0 unbounded
<xs:group> nsA:AdvertisementElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
AdvId nsA:AdvId Required
AdvTransTyp nsA:AdvTransTyp Required
AdvRefID nsA:AdvRefID Optional
AdvSide nsA:AdvSide Required
Qty nsA:Qty Required
QtyTyp nsA:QtyTyp Optional
Px nsA:Px Optional
Ccy nsA:Ccy Optional
TrdDt nsA:TrdDt Optional
TxnTm nsA:TxnTm Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
URL nsA:URL Optional
LastMkt nsA:LastMkt Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
Collapse Derivation Tree:
Collapse References:
nsA:Adv
