Definition Type: Element
Name: AffectOrd
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:AffectedOrdGrp_Block_t
Containing Schema: fixml-order-base-4-4.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

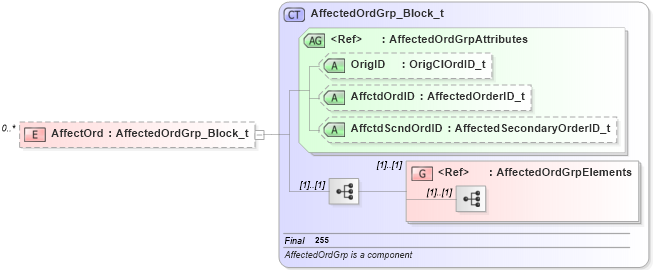

Collapse XSD Schema Diagram:
Drilldown into AffectedOrdGrpElements in schema fixml-order-base-4-4_xsd Drilldown into AffctdScndOrdID in schema fixml-order-base-4-4_xsd Drilldown into AffctdOrdID in schema fixml-order-base-4-4_xsd Drilldown into OrigID in schema fixml-order-base-4-4_xsd Drilldown into AffectedOrdGrpAttributes in schema fixml-order-base-4-4_xsd Drilldown into AffectedOrdGrp_Block_t in schema fixml-order-base-4-4_xsdXSD Diagram of AffectOrd in schema fixml-order-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="AffectOrd" type="AffectedOrdGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:AffectedOrdGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
OrigID nsA:OrigID Optional
AffctdOrdID nsA:AffctdOrdID Optional
AffctdScndOrdID nsA:AffctdScndOrdID Optional
Collapse Derivation Tree:
