Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: AllocationReportAckAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-allocation-base-4-4.xsd

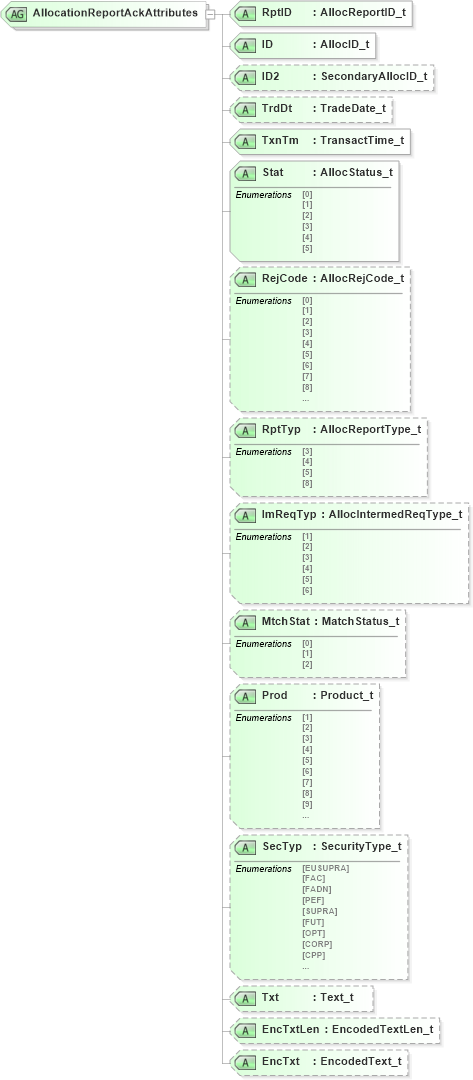

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-allocation-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-allocation-base-4-4_xsd Drilldown into Txt in schema fixml-allocation-base-4-4_xsd Drilldown into SecTyp in schema fixml-allocation-base-4-4_xsd Drilldown into Prod in schema fixml-allocation-base-4-4_xsd Drilldown into MtchStat in schema fixml-allocation-base-4-4_xsd Drilldown into ImReqTyp in schema fixml-allocation-base-4-4_xsd Drilldown into RptTyp in schema fixml-allocation-base-4-4_xsd Drilldown into RejCode in schema fixml-allocation-base-4-4_xsd Drilldown into Stat in schema fixml-allocation-base-4-4_xsd Drilldown into TxnTm in schema fixml-allocation-base-4-4_xsd Drilldown into TrdDt in schema fixml-allocation-base-4-4_xsd Drilldown into ID2 in schema fixml-allocation-base-4-4_xsd Drilldown into ID in schema fixml-allocation-base-4-4_xsd Drilldown into RptID in schema fixml-allocation-base-4-4_xsdXSD Diagram of AllocationReportAckAttributes in schema fixml-allocation-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="AllocationReportAckAttributes">
    <xs:attribute name="RptID" type="AllocReportID_t" use="required" />
    <xs:attribute name="ID" type="AllocID_t" use="required" />
    <xs:attribute name="ID2" type="SecondaryAllocID_t" use="optional" />
    <xs:attribute name="TrdDt" type="TradeDate_t" use="optional" />
    <xs:attribute name="TxnTm" type="TransactTime_t" use="required" />
    <xs:attribute name="Stat" type="AllocStatus_t" use="required" />
    <xs:attribute name="RejCode" type="AllocRejCode_t" use="optional" />
    <xs:attribute name="RptTyp" type="AllocReportType_t" use="optional" />
    <xs:attribute name="ImReqTyp" type="AllocIntermedReqType_t" use="optional" />
    <xs:attribute name="MtchStat" type="MatchStatus_t" use="optional" />
    <xs:attribute name="Prod" type="Product_t" use="optional" />
    <xs:attribute name="SecTyp" type="SecurityType_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
RptID nsA:RptID Required
ID nsA:ID Required
ID2 nsA:ID2 Optional
TrdDt nsA:TrdDt Optional
TxnTm nsA:TxnTm Required
Stat nsA:Stat Required
RejCode nsA:RejCode Optional
RptTyp nsA:RptTyp Optional
ImReqTyp nsA:ImReqTyp Optional
MtchStat nsA:MtchStat Optional
Prod nsA:Prod Optional
SecTyp nsA:SecTyp Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
