Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: AsgnRpt
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:AssignmentReport_message_t
Containing Schema: fixml-positions-base-4-4.xsd
Abstract

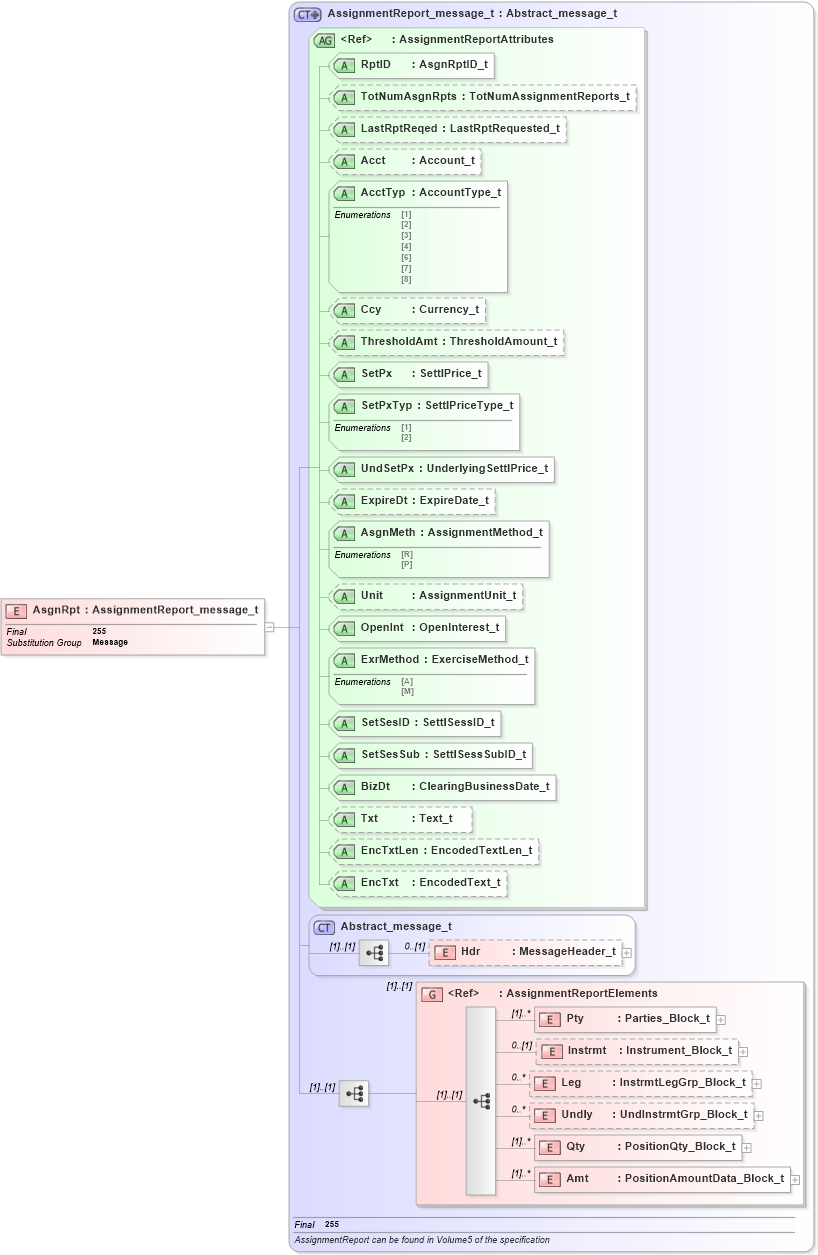

Collapse XSD Schema Diagram:
Drilldown into Amt in schema fixml-positions-base-4-4_xsd Drilldown into Qty in schema fixml-positions-base-4-4_xsd Drilldown into Undly in schema fixml-positions-base-4-4_xsd Drilldown into Leg in schema fixml-positions-base-4-4_xsd Drilldown into Instrmt in schema fixml-positions-base-4-4_xsd Drilldown into Pty in schema fixml-positions-base-4-4_xsd Drilldown into AssignmentReportElements in schema fixml-positions-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-positions-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-positions-base-4-4_xsd Drilldown into Txt in schema fixml-positions-base-4-4_xsd Drilldown into BizDt in schema fixml-positions-base-4-4_xsd Drilldown into SetSesSub in schema fixml-positions-base-4-4_xsd Drilldown into SetSesID in schema fixml-positions-base-4-4_xsd Drilldown into ExrMethod in schema fixml-positions-base-4-4_xsd Drilldown into OpenInt in schema fixml-positions-base-4-4_xsd Drilldown into Unit in schema fixml-positions-base-4-4_xsd Drilldown into AsgnMeth in schema fixml-positions-base-4-4_xsd Drilldown into ExpireDt in schema fixml-positions-base-4-4_xsd Drilldown into UndSetPx in schema fixml-positions-base-4-4_xsd Drilldown into SetPxTyp in schema fixml-positions-base-4-4_xsd Drilldown into SetPx in schema fixml-positions-base-4-4_xsd Drilldown into ThresholdAmt in schema fixml-positions-base-4-4_xsd Drilldown into Ccy in schema fixml-positions-base-4-4_xsd Drilldown into AcctTyp in schema fixml-positions-base-4-4_xsd Drilldown into Acct in schema fixml-positions-base-4-4_xsd Drilldown into LastRptReqed in schema fixml-positions-base-4-4_xsd Drilldown into TotNumAsgnRpts in schema fixml-positions-base-4-4_xsd Drilldown into RptID in schema fixml-positions-base-4-4_xsd Drilldown into AssignmentReportAttributes in schema fixml-positions-base-4-4_xsd Drilldown into AssignmentReport_message_t in schema fixml-positions-base-4-4_xsdXSD Diagram of AsgnRpt in schema fixml-positions-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="AsgnRpt" type="AssignmentReport_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty (1) unbounded
Instrmt nsA:Instrmt 0 (1)
Leg nsA:Leg 0 unbounded
Undly nsA:Undly 0 unbounded
Qty nsA:Qty (1) unbounded
Amt nsA:Amt (1) unbounded
<xs:group> nsA:AssignmentReportElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
RptID nsA:RptID Required
TotNumAsgnRpts nsA:TotNumAsgnRpts Optional
LastRptReqed nsA:LastRptReqed Optional
Acct nsA:Acct Optional
AcctTyp nsA:AcctTyp Required
Ccy nsA:Ccy Optional
ThresholdAmt nsA:ThresholdAmt Optional
SetPx nsA:SetPx Required
SetPxTyp nsA:SetPxTyp Required
UndSetPx nsA:UndSetPx Required
ExpireDt nsA:ExpireDt Optional
AsgnMeth nsA:AsgnMeth Required
Unit nsA:Unit Optional
OpenInt nsA:OpenInt Required
ExrMethod nsA:ExrMethod Required
SetSesID nsA:SetSesID Required
SetSesSub nsA:SetSesSub Required
BizDt nsA:BizDt Required
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
