Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: BidCompReqGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-listorders-base-4-4.xsd
Abstract
Documentation:
BidCompReqGrp is a component

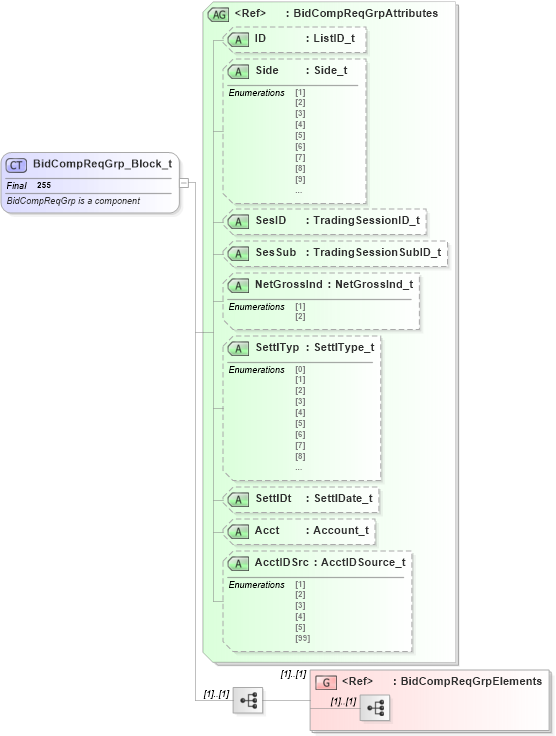

Collapse XSD Schema Diagram:
Drilldown into BidCompReqGrpElements in schema fixml-listorders-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-listorders-base-4-4_xsd Drilldown into Acct in schema fixml-listorders-base-4-4_xsd Drilldown into SettlDt in schema fixml-listorders-base-4-4_xsd Drilldown into SettlTyp in schema fixml-listorders-base-4-4_xsd Drilldown into NetGrossInd in schema fixml-listorders-base-4-4_xsd Drilldown into SesSub in schema fixml-listorders-base-4-4_xsd Drilldown into SesID in schema fixml-listorders-base-4-4_xsd Drilldown into Side in schema fixml-listorders-base-4-4_xsd Drilldown into ID in schema fixml-listorders-base-4-4_xsd Drilldown into BidCompReqGrpAttributes in schema fixml-listorders-base-4-4_xsdXSD Diagram of BidCompReqGrp_Block_t in schema fixml-listorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="BidCompReqGrp_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">BidCompReqGrp is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="BidCompReqGrp" ComponentType="ImplicitBlockRepeating" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="BidCompReqGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="BidCompReqGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:BidCompReqGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Optional
Side nsA:Side Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
NetGrossInd nsA:NetGrossInd Optional
SettlTyp nsA:SettlTyp Optional
SettlDt nsA:SettlDt Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
Collapse Derivation Tree:
Collapse References:
nsA:CompReq
