Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: BidDescReqGrpAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-listorders-base-4-4.xsd

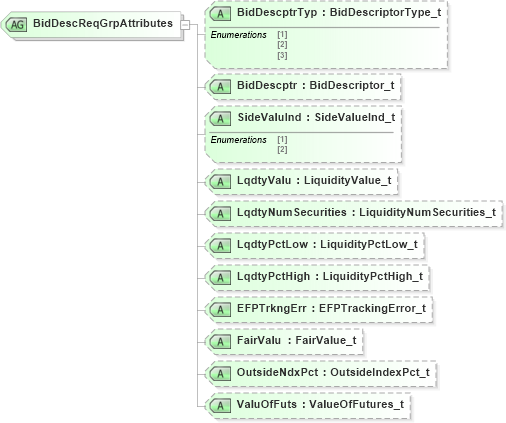

Collapse XSD Schema Diagram:
Drilldown into ValuOfFuts in schema fixml-listorders-base-4-4_xsd Drilldown into OutsideNdxPct in schema fixml-listorders-base-4-4_xsd Drilldown into FairValu in schema fixml-listorders-base-4-4_xsd Drilldown into EFPTrkngErr in schema fixml-listorders-base-4-4_xsd Drilldown into LqdtyPctHigh in schema fixml-listorders-base-4-4_xsd Drilldown into LqdtyPctLow in schema fixml-listorders-base-4-4_xsd Drilldown into LqdtyNumSecurities in schema fixml-listorders-base-4-4_xsd Drilldown into LqdtyValu in schema fixml-listorders-base-4-4_xsd Drilldown into SideValuInd in schema fixml-listorders-base-4-4_xsd Drilldown into BidDescptr in schema fixml-listorders-base-4-4_xsd Drilldown into BidDescptrTyp in schema fixml-listorders-base-4-4_xsdXSD Diagram of BidDescReqGrpAttributes in schema fixml-listorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="BidDescReqGrpAttributes">
    <xs:attribute name="BidDescptrTyp" type="BidDescriptorType_t" use="optional" />
    <xs:attribute name="BidDescptr" type="BidDescriptor_t" use="optional" />
    <xs:attribute name="SideValuInd" type="SideValueInd_t" use="optional" />
    <xs:attribute name="LqdtyValu" type="LiquidityValue_t" use="optional" />
    <xs:attribute name="LqdtyNumSecurities" type="LiquidityNumSecurities_t" use="optional" />
    <xs:attribute name="LqdtyPctLow" type="LiquidityPctLow_t" use="optional" />
    <xs:attribute name="LqdtyPctHigh" type="LiquidityPctHigh_t" use="optional" />
    <xs:attribute name="EFPTrkngErr" type="EFPTrackingError_t" use="optional" />
    <xs:attribute name="FairValu" type="FairValue_t" use="optional" />
    <xs:attribute name="OutsideNdxPct" type="OutsideIndexPct_t" use="optional" />
    <xs:attribute name="ValuOfFuts" type="ValueOfFutures_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
BidDescptrTyp nsA:BidDescptrTyp Optional
BidDescptr nsA:BidDescptr Optional
SideValuInd nsA:SideValuInd Optional
LqdtyValu nsA:LqdtyValu Optional
LqdtyNumSecurities nsA:LqdtyNumSecurities Optional
LqdtyPctLow nsA:LqdtyPctLow Optional
LqdtyPctHigh nsA:LqdtyPctHigh Optional
EFPTrkngErr nsA:EFPTrkngErr Optional
FairValu nsA:FairValu Optional
OutsideNdxPct nsA:OutsideNdxPct Optional
ValuOfFuts nsA:ValuOfFuts Optional
