Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: BidRequestAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-listorders-base-4-4.xsd

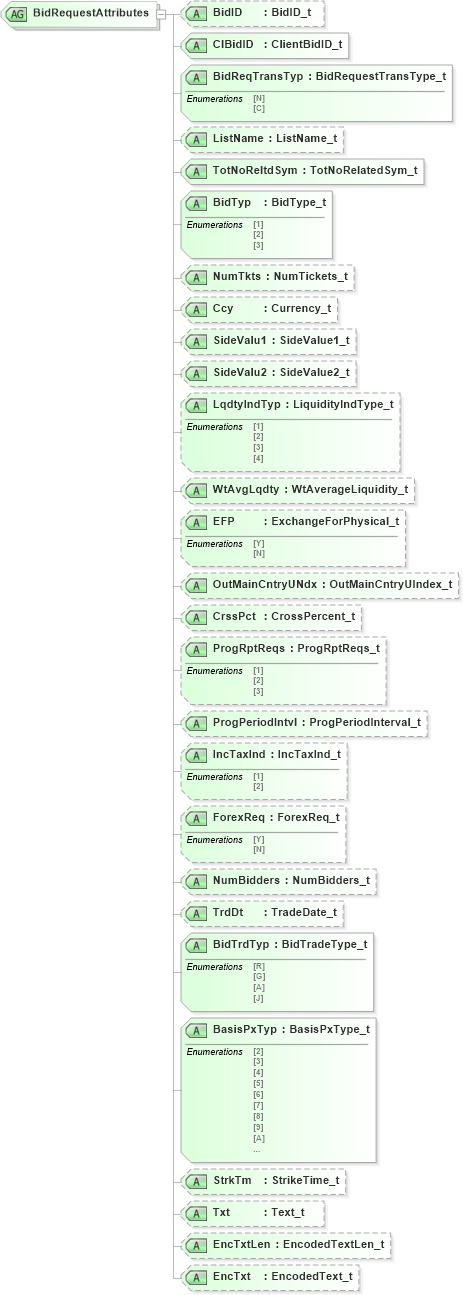

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-listorders-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-listorders-base-4-4_xsd Drilldown into Txt in schema fixml-listorders-base-4-4_xsd Drilldown into StrkTm in schema fixml-listorders-base-4-4_xsd Drilldown into BasisPxTyp in schema fixml-listorders-base-4-4_xsd Drilldown into BidTrdTyp in schema fixml-listorders-base-4-4_xsd Drilldown into TrdDt in schema fixml-listorders-base-4-4_xsd Drilldown into NumBidders in schema fixml-listorders-base-4-4_xsd Drilldown into ForexReq in schema fixml-listorders-base-4-4_xsd Drilldown into IncTaxInd in schema fixml-listorders-base-4-4_xsd Drilldown into ProgPeriodIntvl in schema fixml-listorders-base-4-4_xsd Drilldown into ProgRptReqs in schema fixml-listorders-base-4-4_xsd Drilldown into CrssPct in schema fixml-listorders-base-4-4_xsd Drilldown into OutMainCntryUNdx in schema fixml-listorders-base-4-4_xsd Drilldown into EFP in schema fixml-listorders-base-4-4_xsd Drilldown into WtAvgLqdty in schema fixml-listorders-base-4-4_xsd Drilldown into LqdtyIndTyp in schema fixml-listorders-base-4-4_xsd Drilldown into SideValu2 in schema fixml-listorders-base-4-4_xsd Drilldown into SideValu1 in schema fixml-listorders-base-4-4_xsd Drilldown into Ccy in schema fixml-listorders-base-4-4_xsd Drilldown into NumTkts in schema fixml-listorders-base-4-4_xsd Drilldown into BidTyp in schema fixml-listorders-base-4-4_xsd Drilldown into TotNoReltdSym in schema fixml-listorders-base-4-4_xsd Drilldown into ListName in schema fixml-listorders-base-4-4_xsd Drilldown into BidReqTransTyp in schema fixml-listorders-base-4-4_xsd Drilldown into ClBidID in schema fixml-listorders-base-4-4_xsd Drilldown into BidID in schema fixml-listorders-base-4-4_xsdXSD Diagram of BidRequestAttributes in schema fixml-listorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="BidRequestAttributes">
    <xs:attribute name="BidID" type="BidID_t" use="optional" />
    <xs:attribute name="ClBidID" type="ClientBidID_t" use="required" />
    <xs:attribute name="BidReqTransTyp" type="BidRequestTransType_t" use="required" />
    <xs:attribute name="ListName" type="ListName_t" use="optional" />
    <xs:attribute name="TotNoReltdSym" type="TotNoRelatedSym_t" use="required" />
    <xs:attribute name="BidTyp" type="BidType_t" use="required" />
    <xs:attribute name="NumTkts" type="NumTickets_t" use="optional" />
    <xs:attribute name="Ccy" type="Currency_t" use="optional" />
    <xs:attribute name="SideValu1" type="SideValue1_t" use="optional" />
    <xs:attribute name="SideValu2" type="SideValue2_t" use="optional" />
    <xs:attribute name="LqdtyIndTyp" type="LiquidityIndType_t" use="optional" />
    <xs:attribute name="WtAvgLqdty" type="WtAverageLiquidity_t" use="optional" />
    <xs:attribute name="EFP" type="ExchangeForPhysical_t" use="optional" />
    <xs:attribute name="OutMainCntryUNdx" type="OutMainCntryUIndex_t" use="optional" />
    <xs:attribute name="CrssPct" type="CrossPercent_t" use="optional" />
    <xs:attribute name="ProgRptReqs" type="ProgRptReqs_t" use="optional" />
    <xs:attribute name="ProgPeriodIntvl" type="ProgPeriodInterval_t" use="optional" />
    <xs:attribute name="IncTaxInd" type="IncTaxInd_t" use="optional" />
    <xs:attribute name="ForexReq" type="ForexReq_t" use="optional" />
    <xs:attribute name="NumBidders" type="NumBidders_t" use="optional" />
    <xs:attribute name="TrdDt" type="TradeDate_t" use="optional" />
    <xs:attribute name="BidTrdTyp" type="BidTradeType_t" use="required" />
    <xs:attribute name="BasisPxTyp" type="BasisPxType_t" use="required" />
    <xs:attribute name="StrkTm" type="StrikeTime_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
BidID nsA:BidID Optional
ClBidID nsA:ClBidID Required
BidReqTransTyp nsA:BidReqTransTyp Required
ListName nsA:ListName Optional
TotNoReltdSym nsA:TotNoReltdSym Required
BidTyp nsA:BidTyp Required
NumTkts nsA:NumTkts Optional
Ccy nsA:Ccy Optional
SideValu1 nsA:SideValu1 Optional
SideValu2 nsA:SideValu2 Optional
LqdtyIndTyp nsA:LqdtyIndTyp Optional
WtAvgLqdty nsA:WtAvgLqdty Optional
EFP nsA:EFP Optional
OutMainCntryUNdx nsA:OutMainCntryUNdx Optional
CrssPct nsA:CrssPct Optional
ProgRptReqs nsA:ProgRptReqs Optional
ProgPeriodIntvl nsA:ProgPeriodIntvl Optional
IncTaxInd nsA:IncTaxInd Optional
ForexReq nsA:ForexReq Optional
NumBidders nsA:NumBidders Optional
TrdDt nsA:TrdDt Optional
BidTrdTyp nsA:BidTrdTyp Required
BasisPxTyp nsA:BasisPxTyp Required
StrkTm nsA:StrkTm Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
