Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: CollateralReportAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-collateral-base-4-4.xsd

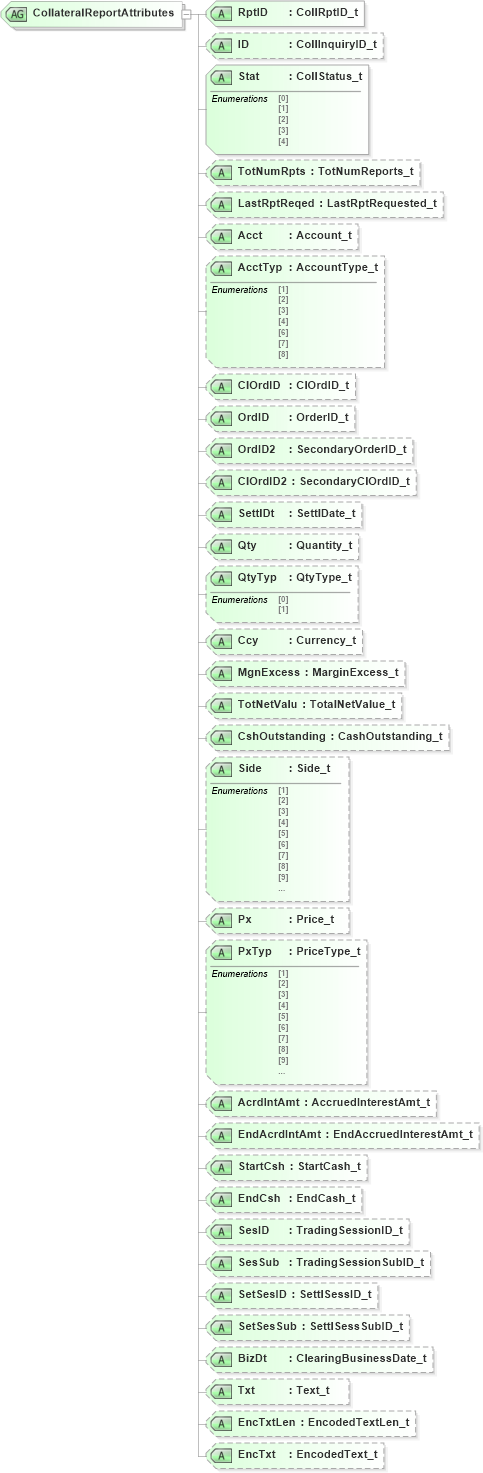

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-collateral-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-collateral-base-4-4_xsd Drilldown into Txt in schema fixml-collateral-base-4-4_xsd Drilldown into BizDt in schema fixml-collateral-base-4-4_xsd Drilldown into SetSesSub in schema fixml-collateral-base-4-4_xsd Drilldown into SetSesID in schema fixml-collateral-base-4-4_xsd Drilldown into SesSub in schema fixml-collateral-base-4-4_xsd Drilldown into SesID in schema fixml-collateral-base-4-4_xsd Drilldown into EndCsh in schema fixml-collateral-base-4-4_xsd Drilldown into StartCsh in schema fixml-collateral-base-4-4_xsd Drilldown into EndAcrdIntAmt in schema fixml-collateral-base-4-4_xsd Drilldown into AcrdIntAmt in schema fixml-collateral-base-4-4_xsd Drilldown into PxTyp in schema fixml-collateral-base-4-4_xsd Drilldown into Px in schema fixml-collateral-base-4-4_xsd Drilldown into Side in schema fixml-collateral-base-4-4_xsd Drilldown into CshOutstanding in schema fixml-collateral-base-4-4_xsd Drilldown into TotNetValu in schema fixml-collateral-base-4-4_xsd Drilldown into MgnExcess in schema fixml-collateral-base-4-4_xsd Drilldown into Ccy in schema fixml-collateral-base-4-4_xsd Drilldown into QtyTyp in schema fixml-collateral-base-4-4_xsd Drilldown into Qty in schema fixml-collateral-base-4-4_xsd Drilldown into SettlDt in schema fixml-collateral-base-4-4_xsd Drilldown into ClOrdID2 in schema fixml-collateral-base-4-4_xsd Drilldown into OrdID2 in schema fixml-collateral-base-4-4_xsd Drilldown into OrdID in schema fixml-collateral-base-4-4_xsd Drilldown into ClOrdID in schema fixml-collateral-base-4-4_xsd Drilldown into AcctTyp in schema fixml-collateral-base-4-4_xsd Drilldown into Acct in schema fixml-collateral-base-4-4_xsd Drilldown into LastRptReqed in schema fixml-collateral-base-4-4_xsd Drilldown into TotNumRpts in schema fixml-collateral-base-4-4_xsd Drilldown into Stat in schema fixml-collateral-base-4-4_xsd Drilldown into ID in schema fixml-collateral-base-4-4_xsd Drilldown into RptID in schema fixml-collateral-base-4-4_xsdXSD Diagram of CollateralReportAttributes in schema fixml-collateral-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="CollateralReportAttributes">
    <xs:attribute name="RptID" type="CollRptID_t" use="required" />
    <xs:attribute name="ID" type="CollInquiryID_t" use="optional" />
    <xs:attribute name="Stat" type="CollStatus_t" use="required" />
    <xs:attribute name="TotNumRpts" type="TotNumReports_t" use="optional" />
    <xs:attribute name="LastRptReqed" type="LastRptRequested_t" use="optional" />
    <xs:attribute name="Acct" type="Account_t" use="optional" />
    <xs:attribute name="AcctTyp" type="AccountType_t" use="optional" />
    <xs:attribute name="ClOrdID" type="ClOrdID_t" use="optional" />
    <xs:attribute name="OrdID" type="OrderID_t" use="optional" />
    <xs:attribute name="OrdID2" type="SecondaryOrderID_t" use="optional" />
    <xs:attribute name="ClOrdID2" type="SecondaryClOrdID_t" use="optional" />
    <xs:attribute name="SettlDt" type="SettlDate_t" use="optional" />
    <xs:attribute name="Qty" type="Quantity_t" use="optional" />
    <xs:attribute name="QtyTyp" type="QtyType_t" use="optional" />
    <xs:attribute name="Ccy" type="Currency_t" use="optional" />
    <xs:attribute name="MgnExcess" type="MarginExcess_t" use="optional" />
    <xs:attribute name="TotNetValu" type="TotalNetValue_t" use="optional" />
    <xs:attribute name="CshOutstanding" type="CashOutstanding_t" use="optional" />
    <xs:attribute name="Side" type="Side_t" use="optional" />
    <xs:attribute name="Px" type="Price_t" use="optional" />
    <xs:attribute name="PxTyp" type="PriceType_t" use="optional" />
    <xs:attribute name="AcrdIntAmt" type="AccruedInterestAmt_t" use="optional" />
    <xs:attribute name="EndAcrdIntAmt" type="EndAccruedInterestAmt_t" use="optional" />
    <xs:attribute name="StartCsh" type="StartCash_t" use="optional" />
    <xs:attribute name="EndCsh" type="EndCash_t" use="optional" />
    <xs:attribute name="SesID" type="TradingSessionID_t" use="optional" />
    <xs:attribute name="SesSub" type="TradingSessionSubID_t" use="optional" />
    <xs:attribute name="SetSesID" type="SettlSessID_t" use="optional" />
    <xs:attribute name="SetSesSub" type="SettlSessSubID_t" use="optional" />
    <xs:attribute name="BizDt" type="ClearingBusinessDate_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
RptID nsA:RptID Required
ID nsA:ID Optional
Stat nsA:Stat Required
TotNumRpts nsA:TotNumRpts Optional
LastRptReqed nsA:LastRptReqed Optional
Acct nsA:Acct Optional
AcctTyp nsA:AcctTyp Optional
ClOrdID nsA:ClOrdID Optional
OrdID nsA:OrdID Optional
OrdID2 nsA:OrdID2 Optional
ClOrdID2 nsA:ClOrdID2 Optional
SettlDt nsA:SettlDt Optional
Qty nsA:Qty Optional
QtyTyp nsA:QtyTyp Optional
Ccy nsA:Ccy Optional
MgnExcess nsA:MgnExcess Optional
TotNetValu nsA:TotNetValu Optional
CshOutstanding nsA:CshOutstanding Optional
Side nsA:Side Optional
Px nsA:Px Optional
PxTyp nsA:PxTyp Optional
AcrdIntAmt nsA:AcrdIntAmt Optional
EndAcrdIntAmt nsA:EndAcrdIntAmt Optional
StartCsh nsA:StartCsh Optional
EndCsh nsA:EndCsh Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
SetSesID nsA:SetSesID Optional
SetSesSub nsA:SetSesSub Optional
BizDt nsA:BizDt Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
