Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: CollInqAck
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:CollateralInquiryAck_message_t
Containing Schema: fixml-collateral-base-4-4.xsd
Abstract

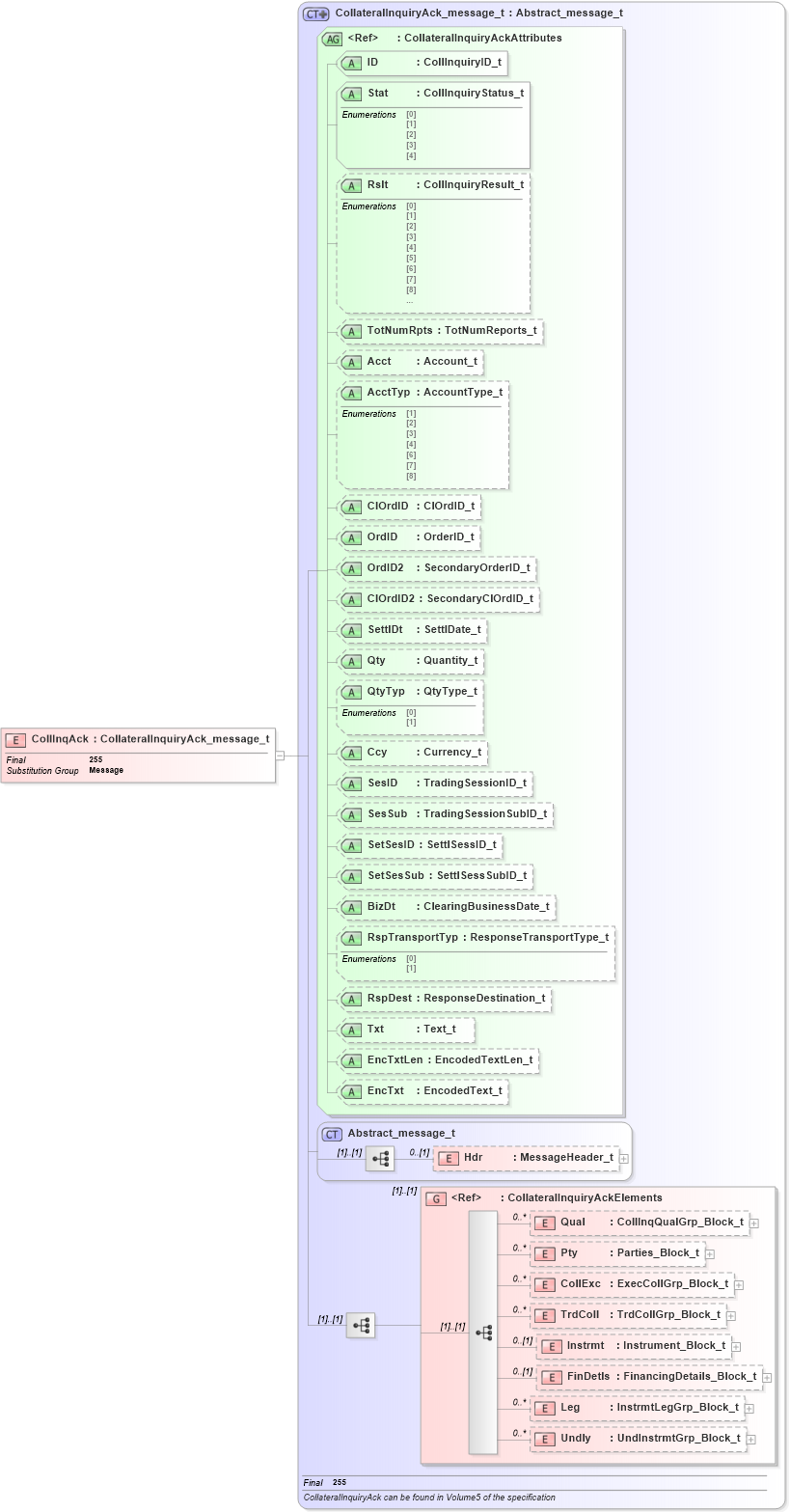

Collapse XSD Schema Diagram:
Drilldown into Undly in schema fixml-collateral-base-4-4_xsd Drilldown into Leg in schema fixml-collateral-base-4-4_xsd Drilldown into FinDetls in schema fixml-collateral-base-4-4_xsd Drilldown into Instrmt in schema fixml-collateral-base-4-4_xsd Drilldown into TrdColl in schema fixml-collateral-base-4-4_xsd Drilldown into CollExc in schema fixml-collateral-base-4-4_xsd Drilldown into Pty in schema fixml-collateral-base-4-4_xsd Drilldown into Qual in schema fixml-collateral-base-4-4_xsd Drilldown into CollateralInquiryAckElements in schema fixml-collateral-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-collateral-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-collateral-base-4-4_xsd Drilldown into Txt in schema fixml-collateral-base-4-4_xsd Drilldown into RspDest in schema fixml-collateral-base-4-4_xsd Drilldown into RspTransportTyp in schema fixml-collateral-base-4-4_xsd Drilldown into BizDt in schema fixml-collateral-base-4-4_xsd Drilldown into SetSesSub in schema fixml-collateral-base-4-4_xsd Drilldown into SetSesID in schema fixml-collateral-base-4-4_xsd Drilldown into SesSub in schema fixml-collateral-base-4-4_xsd Drilldown into SesID in schema fixml-collateral-base-4-4_xsd Drilldown into Ccy in schema fixml-collateral-base-4-4_xsd Drilldown into QtyTyp in schema fixml-collateral-base-4-4_xsd Drilldown into Qty in schema fixml-collateral-base-4-4_xsd Drilldown into SettlDt in schema fixml-collateral-base-4-4_xsd Drilldown into ClOrdID2 in schema fixml-collateral-base-4-4_xsd Drilldown into OrdID2 in schema fixml-collateral-base-4-4_xsd Drilldown into OrdID in schema fixml-collateral-base-4-4_xsd Drilldown into ClOrdID in schema fixml-collateral-base-4-4_xsd Drilldown into AcctTyp in schema fixml-collateral-base-4-4_xsd Drilldown into Acct in schema fixml-collateral-base-4-4_xsd Drilldown into TotNumRpts in schema fixml-collateral-base-4-4_xsd Drilldown into Rslt in schema fixml-collateral-base-4-4_xsd Drilldown into Stat in schema fixml-collateral-base-4-4_xsd Drilldown into ID in schema fixml-collateral-base-4-4_xsd Drilldown into CollateralInquiryAckAttributes in schema fixml-collateral-base-4-4_xsd Drilldown into CollateralInquiryAck_message_t in schema fixml-collateral-base-4-4_xsdXSD Diagram of CollInqAck in schema fixml-collateral-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="CollInqAck" type="CollateralInquiryAck_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Qual nsA:Qual 0 unbounded
Pty nsA:Pty 0 unbounded
CollExc nsA:CollExc 0 unbounded
TrdColl nsA:TrdColl 0 unbounded
Instrmt nsA:Instrmt 0 (1)
FinDetls nsA:FinDetls 0 (1)
Leg nsA:Leg 0 unbounded
Undly nsA:Undly 0 unbounded
<xs:group> nsA:CollateralInquiryAckElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Required
Stat nsA:Stat Required
Rslt nsA:Rslt Optional
TotNumRpts nsA:TotNumRpts Optional
Acct nsA:Acct Optional
AcctTyp nsA:AcctTyp Optional
ClOrdID nsA:ClOrdID Optional
OrdID nsA:OrdID Optional
OrdID2 nsA:OrdID2 Optional
ClOrdID2 nsA:ClOrdID2 Optional
SettlDt nsA:SettlDt Optional
Qty nsA:Qty Optional
QtyTyp nsA:QtyTyp Optional
Ccy nsA:Ccy Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
SetSesID nsA:SetSesID Optional
SetSesSub nsA:SetSesSub Optional
BizDt nsA:BizDt Optional
RspTransportTyp nsA:RspTransportTyp Optional
RspDest nsA:RspDest Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
