Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: CompRsp
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:BidCompRspGrp_Block_t
Containing Schema: fixml-listorders-base-4-4.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

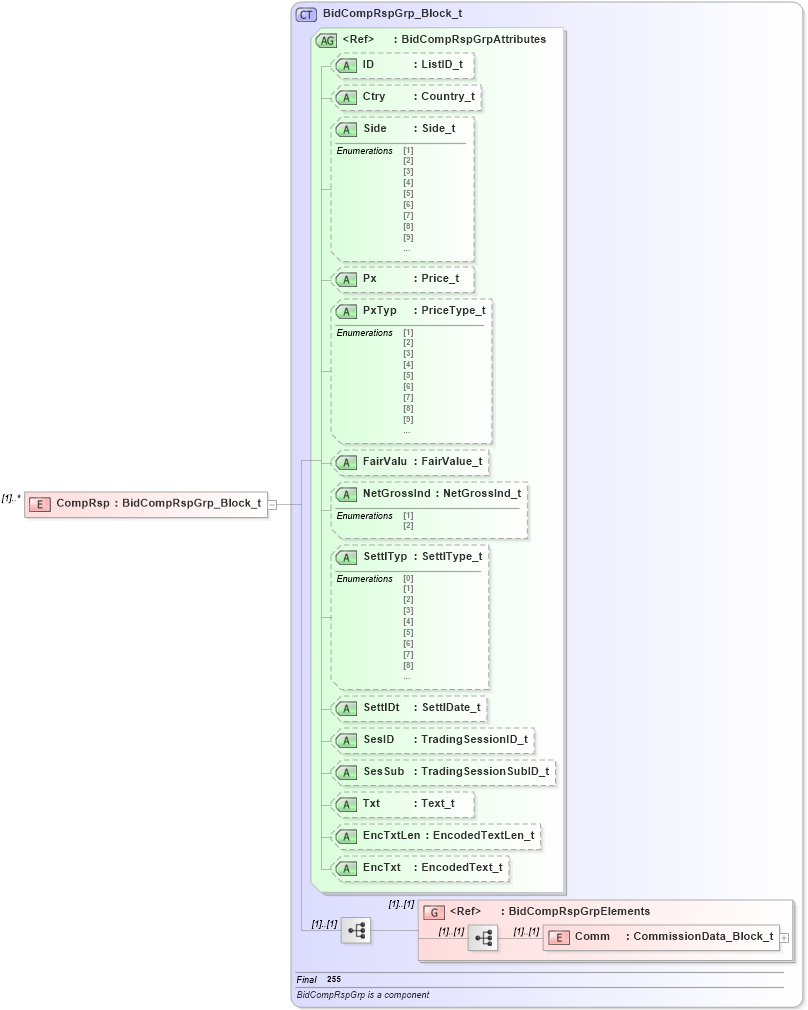

Collapse XSD Schema Diagram:
Drilldown into Comm in schema fixml-listorders-base-4-4_xsd Drilldown into BidCompRspGrpElements in schema fixml-listorders-base-4-4_xsd Drilldown into EncTxt in schema fixml-listorders-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-listorders-base-4-4_xsd Drilldown into Txt in schema fixml-listorders-base-4-4_xsd Drilldown into SesSub in schema fixml-listorders-base-4-4_xsd Drilldown into SesID in schema fixml-listorders-base-4-4_xsd Drilldown into SettlDt in schema fixml-listorders-base-4-4_xsd Drilldown into SettlTyp in schema fixml-listorders-base-4-4_xsd Drilldown into NetGrossInd in schema fixml-listorders-base-4-4_xsd Drilldown into FairValu in schema fixml-listorders-base-4-4_xsd Drilldown into PxTyp in schema fixml-listorders-base-4-4_xsd Drilldown into Px in schema fixml-listorders-base-4-4_xsd Drilldown into Side in schema fixml-listorders-base-4-4_xsd Drilldown into Ctry in schema fixml-listorders-base-4-4_xsd Drilldown into ID in schema fixml-listorders-base-4-4_xsd Drilldown into BidCompRspGrpAttributes in schema fixml-listorders-base-4-4_xsd Drilldown into BidCompRspGrp_Block_t in schema fixml-listorders-base-4-4_xsdXSD Diagram of CompRsp in schema fixml-listorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="CompRsp" type="BidCompRspGrp_Block_t" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Comm nsA:Comm (1) (1)
<xs:group> nsA:BidCompRspGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Optional
Ctry nsA:Ctry Optional
Side nsA:Side Optional
Px nsA:Px Optional
PxTyp nsA:PxTyp Optional
FairValu nsA:FairValu Optional
NetGrossInd nsA:NetGrossInd Optional
SettlTyp nsA:SettlTyp Optional
SettlDt nsA:SettlDt Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
