Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: Confirmation_Ack_message_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:Abstract_message_t
Containing Schema: fixml-confirmation-base-4-4.xsd
Abstract
Documentation:
Confirmation_Ack can be found in Volume5 of the specification

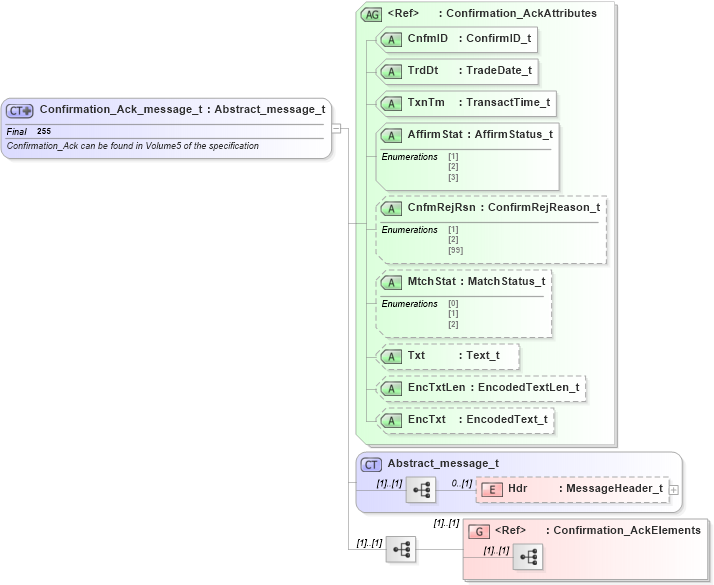

Collapse XSD Schema Diagram:
Drilldown into Confirmation_AckElements in schema fixml-confirmation-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-confirmation-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-confirmation-base-4-4_xsd Drilldown into Txt in schema fixml-confirmation-base-4-4_xsd Drilldown into MtchStat in schema fixml-confirmation-base-4-4_xsd Drilldown into CnfmRejRsn in schema fixml-confirmation-base-4-4_xsd Drilldown into AffirmStat in schema fixml-confirmation-base-4-4_xsd Drilldown into TxnTm in schema fixml-confirmation-base-4-4_xsd Drilldown into TrdDt in schema fixml-confirmation-base-4-4_xsd Drilldown into CnfmID in schema fixml-confirmation-base-4-4_xsd Drilldown into Confirmation_AckAttributes in schema fixml-confirmation-base-4-4_xsdXSD Diagram of Confirmation_Ack_message_t in schema fixml-confirmation-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="Confirmation_Ack_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">Confirmation_Ack can be found in Volume5 of the specification
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="Confirmation_Ack" ComponentType="Message" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="Confirmation_AckElements" />
            </xs:sequence>
            <xs:attributeGroup ref="Confirmation_AckAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
<xs:group> nsA:Confirmation_AckElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
CnfmID nsA:CnfmID Required
TrdDt nsA:TrdDt Required
TxnTm nsA:TxnTm Required
AffirmStat nsA:AffirmStat Required
CnfmRejRsn nsA:CnfmRejRsn Optional
MtchStat nsA:MtchStat Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:CnfmAck
