Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: Confirmation_AckAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-confirmation-base-4-4.xsd

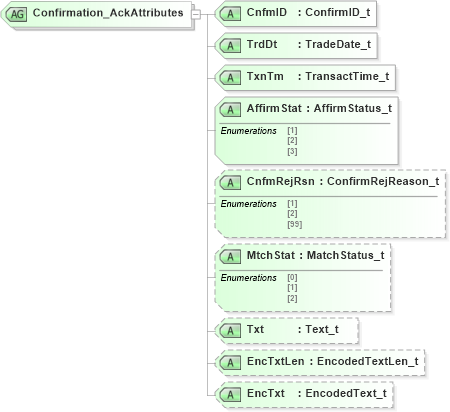

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-confirmation-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-confirmation-base-4-4_xsd Drilldown into Txt in schema fixml-confirmation-base-4-4_xsd Drilldown into MtchStat in schema fixml-confirmation-base-4-4_xsd Drilldown into CnfmRejRsn in schema fixml-confirmation-base-4-4_xsd Drilldown into AffirmStat in schema fixml-confirmation-base-4-4_xsd Drilldown into TxnTm in schema fixml-confirmation-base-4-4_xsd Drilldown into TrdDt in schema fixml-confirmation-base-4-4_xsd Drilldown into CnfmID in schema fixml-confirmation-base-4-4_xsdXSD Diagram of Confirmation_AckAttributes in schema fixml-confirmation-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="Confirmation_AckAttributes">
    <xs:attribute name="CnfmID" type="ConfirmID_t" use="required" />
    <xs:attribute name="TrdDt" type="TradeDate_t" use="required" />
    <xs:attribute name="TxnTm" type="TransactTime_t" use="required" />
    <xs:attribute name="AffirmStat" type="AffirmStatus_t" use="required" />
    <xs:attribute name="CnfmRejRsn" type="ConfirmRejReason_t" use="optional" />
    <xs:attribute name="MtchStat" type="MatchStatus_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
CnfmID nsA:CnfmID Required
TrdDt nsA:TrdDt Required
TxnTm nsA:TxnTm Required
AffirmStat nsA:AffirmStat Required
CnfmRejRsn nsA:CnfmRejRsn Optional
MtchStat nsA:MtchStat Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
