Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: DerivativeSecurityListRequestAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-securitystatus-base-4-4.xsd

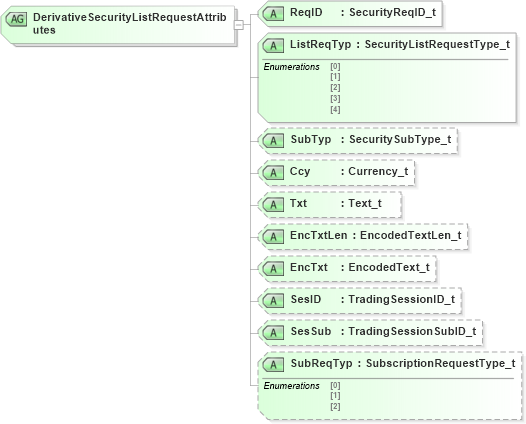

Collapse XSD Schema Diagram:
Drilldown into SubReqTyp in schema fixml-securitystatus-base-4-4_xsd Drilldown into SesSub in schema fixml-securitystatus-base-4-4_xsd Drilldown into SesID in schema fixml-securitystatus-base-4-4_xsd Drilldown into EncTxt in schema fixml-securitystatus-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-securitystatus-base-4-4_xsd Drilldown into Txt in schema fixml-securitystatus-base-4-4_xsd Drilldown into Ccy in schema fixml-securitystatus-base-4-4_xsd Drilldown into SubTyp in schema fixml-securitystatus-base-4-4_xsd Drilldown into ListReqTyp in schema fixml-securitystatus-base-4-4_xsd Drilldown into ReqID in schema fixml-securitystatus-base-4-4_xsdXSD Diagram of DerivativeSecurityListRequestAttributes in schema fixml-securitystatus-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="DerivativeSecurityListRequestAttributes">
    <xs:attribute name="ReqID" type="SecurityReqID_t" use="required" />
    <xs:attribute name="ListReqTyp" type="SecurityListRequestType_t" use="required" />
    <xs:attribute name="SubTyp" type="SecuritySubType_t" use="optional" />
    <xs:attribute name="Ccy" type="Currency_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
    <xs:attribute name="SesID" type="TradingSessionID_t" use="optional" />
    <xs:attribute name="SesSub" type="TradingSessionSubID_t" use="optional" />
    <xs:attribute name="SubReqTyp" type="SubscriptionRequestType_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
ListReqTyp nsA:ListReqTyp Required
SubTyp nsA:SubTyp Optional
Ccy nsA:Ccy Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
SubReqTyp nsA:SubReqTyp Optional
