Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: DerivSecList
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:DerivativeSecurityList_message_t
Containing Schema: fixml-securitystatus-base-4-4.xsd
Abstract

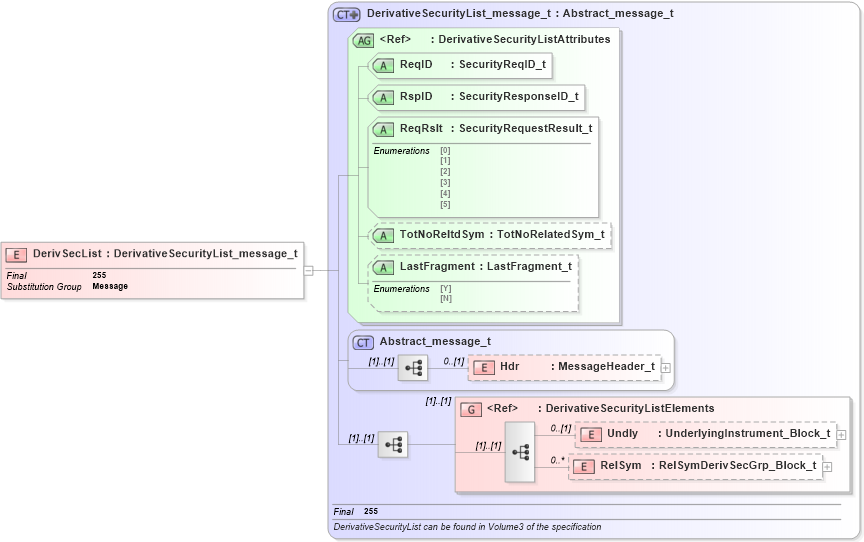

Collapse XSD Schema Diagram:
Drilldown into RelSym in schema fixml-securitystatus-base-4-4_xsd Drilldown into Undly in schema fixml-securitystatus-base-4-4_xsd Drilldown into DerivativeSecurityListElements in schema fixml-securitystatus-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into LastFragment in schema fixml-securitystatus-base-4-4_xsd Drilldown into TotNoReltdSym in schema fixml-securitystatus-base-4-4_xsd Drilldown into ReqRslt in schema fixml-securitystatus-base-4-4_xsd Drilldown into RspID in schema fixml-securitystatus-base-4-4_xsd Drilldown into ReqID in schema fixml-securitystatus-base-4-4_xsd Drilldown into DerivativeSecurityListAttributes in schema fixml-securitystatus-base-4-4_xsd Drilldown into DerivativeSecurityList_message_t in schema fixml-securitystatus-base-4-4_xsdXSD Diagram of DerivSecList in schema fixml-securitystatus-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="DerivSecList" type="DerivativeSecurityList_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Undly nsA:Undly 0 (1)
RelSym nsA:RelSym 0 unbounded
<xs:group> nsA:DerivativeSecurityListElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
RspID nsA:RspID Required
ReqRslt nsA:ReqRslt Required
TotNoReltdSym nsA:TotNoReltdSym Optional
LastFragment nsA:LastFragment Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
