Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: DerivSecListReq
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:DerivativeSecurityListRequest_message_t
Containing Schema: fixml-securitystatus-base-4-4.xsd
Abstract

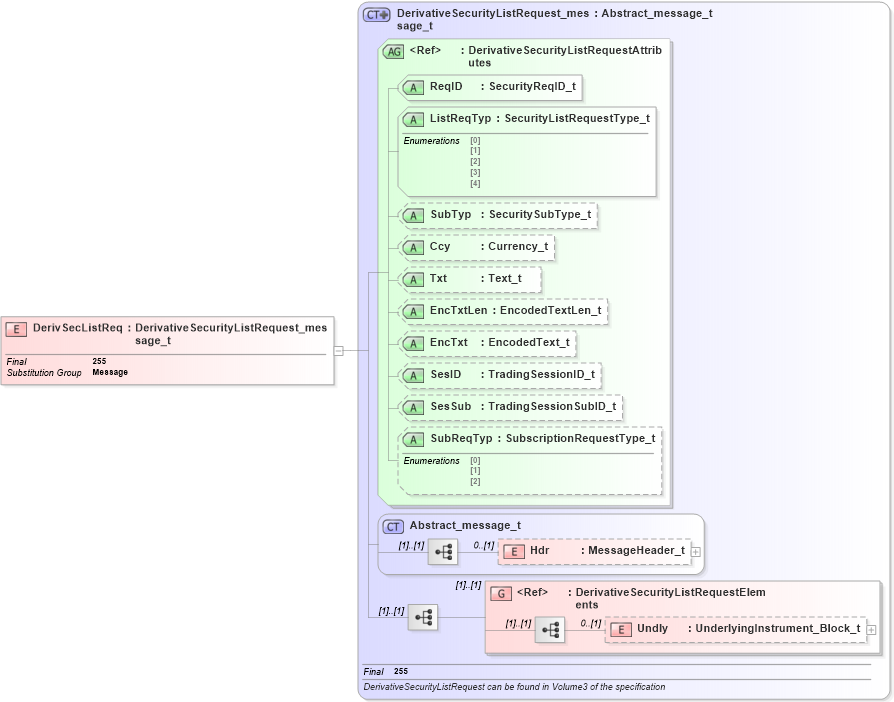

Collapse XSD Schema Diagram:
Drilldown into Undly in schema fixml-securitystatus-base-4-4_xsd Drilldown into DerivativeSecurityListRequestElements in schema fixml-securitystatus-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into SubReqTyp in schema fixml-securitystatus-base-4-4_xsd Drilldown into SesSub in schema fixml-securitystatus-base-4-4_xsd Drilldown into SesID in schema fixml-securitystatus-base-4-4_xsd Drilldown into EncTxt in schema fixml-securitystatus-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-securitystatus-base-4-4_xsd Drilldown into Txt in schema fixml-securitystatus-base-4-4_xsd Drilldown into Ccy in schema fixml-securitystatus-base-4-4_xsd Drilldown into SubTyp in schema fixml-securitystatus-base-4-4_xsd Drilldown into ListReqTyp in schema fixml-securitystatus-base-4-4_xsd Drilldown into ReqID in schema fixml-securitystatus-base-4-4_xsd Drilldown into DerivativeSecurityListRequestAttributes in schema fixml-securitystatus-base-4-4_xsd Drilldown into DerivativeSecurityListRequest_message_t in schema fixml-securitystatus-base-4-4_xsdXSD Diagram of DerivSecListReq in schema fixml-securitystatus-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="DerivSecListReq" type="DerivativeSecurityListRequest_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Undly nsA:Undly 0 (1)
<xs:group> nsA:DerivativeSecurityListRequestElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
ListReqTyp nsA:ListReqTyp Required
SubTyp nsA:SubTyp Optional
Ccy nsA:Ccy Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
SubReqTyp nsA:SubReqTyp Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
