Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: DiscInstr
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:DiscretionInstructions_Block_t
Containing Schema: fixml-multilegorders-base-4-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

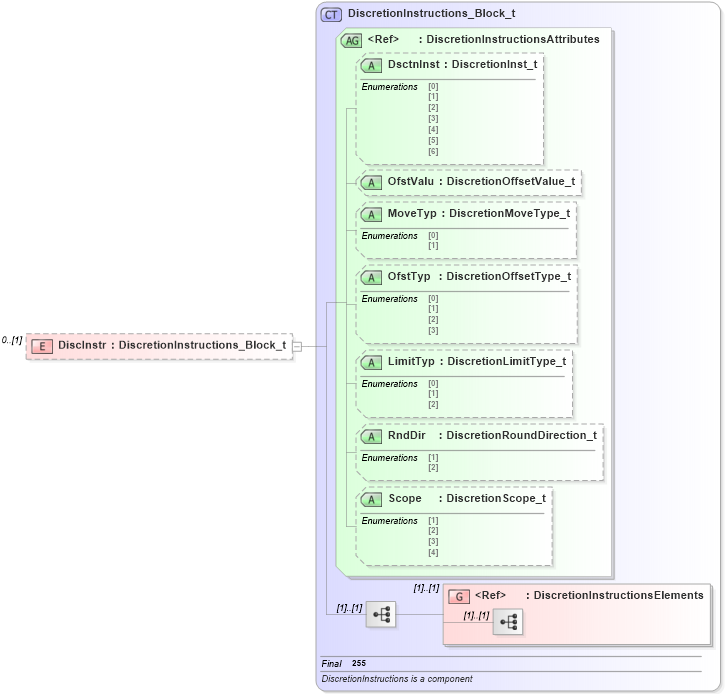

Collapse XSD Schema Diagram:
Drilldown into DiscretionInstructionsElements in schema fixml-components-base-4-4_xsd Drilldown into Scope in schema fixml-components-base-4-4_xsd Drilldown into RndDir in schema fixml-components-base-4-4_xsd Drilldown into LimitTyp in schema fixml-components-base-4-4_xsd Drilldown into OfstTyp in schema fixml-components-base-4-4_xsd Drilldown into MoveTyp in schema fixml-components-base-4-4_xsd Drilldown into OfstValu in schema fixml-components-base-4-4_xsd Drilldown into DsctnInst in schema fixml-components-base-4-4_xsd Drilldown into DiscretionInstructionsAttributes in schema fixml-components-base-4-4_xsd Drilldown into DiscretionInstructions_Block_t in schema fixml-components-base-4-4_xsdXSD Diagram of DiscInstr in schema fixml-multilegorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="DiscInstr" type="DiscretionInstructions_Block_t" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:DiscretionInstructionsElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
DsctnInst nsA:DsctnInst Optional
OfstValu nsA:OfstValu Optional
MoveTyp nsA:MoveTyp Optional
OfstTyp nsA:OfstTyp Optional
LimitTyp nsA:LimitTyp Optional
RndDir nsA:RndDir Optional
Scope nsA:Scope Optional
Collapse Derivation Tree:
