Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: DkTrd
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:DontKnowTradeDK_message_t
Containing Schema: fixml-order-base-4-4.xsd
Abstract

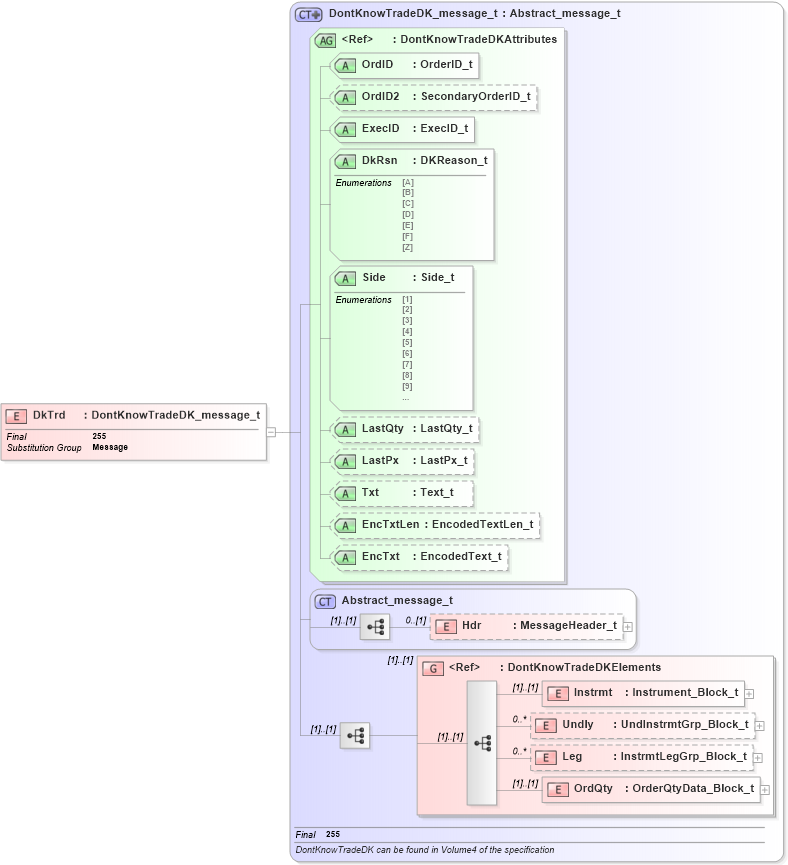

Collapse XSD Schema Diagram:
Drilldown into OrdQty in schema fixml-order-base-4-4_xsd Drilldown into Leg in schema fixml-order-base-4-4_xsd Drilldown into Undly in schema fixml-order-base-4-4_xsd Drilldown into Instrmt in schema fixml-order-base-4-4_xsd Drilldown into DontKnowTradeDKElements in schema fixml-order-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-order-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-order-base-4-4_xsd Drilldown into Txt in schema fixml-order-base-4-4_xsd Drilldown into LastPx in schema fixml-order-base-4-4_xsd Drilldown into LastQty in schema fixml-order-base-4-4_xsd Drilldown into Side in schema fixml-order-base-4-4_xsd Drilldown into DkRsn in schema fixml-order-base-4-4_xsd Drilldown into ExecID in schema fixml-order-base-4-4_xsd Drilldown into OrdID2 in schema fixml-order-base-4-4_xsd Drilldown into OrdID in schema fixml-order-base-4-4_xsd Drilldown into DontKnowTradeDKAttributes in schema fixml-order-base-4-4_xsd Drilldown into DontKnowTradeDK_message_t in schema fixml-order-base-4-4_xsdXSD Diagram of DkTrd in schema fixml-order-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="DkTrd" type="DontKnowTradeDK_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Instrmt nsA:Instrmt (1) (1)
Undly nsA:Undly 0 unbounded
Leg nsA:Leg 0 unbounded
OrdQty nsA:OrdQty (1) (1)
<xs:group> nsA:DontKnowTradeDKElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
OrdID nsA:OrdID Required
OrdID2 nsA:OrdID2 Optional
ExecID nsA:ExecID Required
DkRsn nsA:DkRsn Required
Side nsA:Side Required
LastQty nsA:LastQty Optional
LastPx nsA:LastPx Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
