Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: EvntGrpAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-components-base-4-4.xsd
Collapse XSD Schema Diagram:

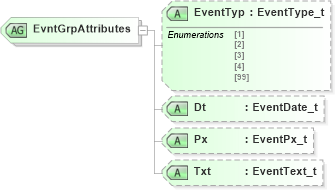

Drilldown into Txt in schema fixml-components-base-4-4_xsd Drilldown into Px in schema fixml-components-base-4-4_xsd Drilldown into Dt in schema fixml-components-base-4-4_xsd Drilldown into EventTyp in schema fixml-components-base-4-4_xsdXSD Diagram of EvntGrpAttributes in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="EvntGrpAttributes">
    <xs:attribute name="EventTyp" type="EventType_t" use="optional" />
    <xs:attribute name="Dt" type="EventDate_t" use="optional" />
    <xs:attribute name="Px" type="EventPx_t" use="optional" />
    <xs:attribute name="Txt" type="EventText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
EventTyp nsA:EventTyp Optional
Dt nsA:Dt Optional
Px nsA:Px Optional
Txt nsA:Txt Optional
